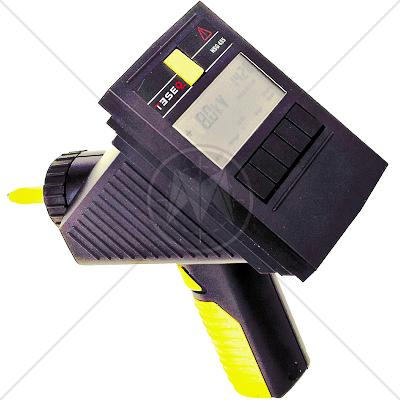

TESEQ NSG 434 ESD Simulator 8.8kV

Description

Ergonomic design and advanced functionality. The pistol-shaped NSG 434 simulator is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible.

NSG 434’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.

NSG 434 has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged.

Features

  • Programmable discharge voltage
  • 200 V to 8.8 kV
  • Stabilized charging voltage
  • Pre-programmed IEC/EN 61000-4-2
  • test settings up to level 3
  • True air-discharge breakdown
  • voltage
  • Battery powered
  • Compact and lightweight design
  • Comfortable use and convenient
  • operation

Specifications

Parameter

Value

Basic set

Carrying case with: electrostatic discharge simulator, battery pack, battery charger 100 to 240 VAC, discharge network 150 pF/330 Ω, air- and contact-discharge tips, grounding cable, user manual

Pulse
network

Network 150 pF/330 Ω as per IEC/EN 61000-4-2 (included)
Range of R/C networks for other standards: R = 0 Ω to 10 kΩ; C = 60 to 500 pF

Discharge voltage

Air-discharge: 200 V to 8.8 kV (in 100 V steps)
Contact-discharge: 200 V to 6.6 kV (in 100 V steps)

Charging voltage measurement

kV, accuracy better than ±5% (stabilized); measurement and display of true air flashover voltage

Discharge detection

Indicated by an oval around the kV symbol, also acoustically in the 'Single' operating mode (air-discharge only)

Holding time

>5 s (charging voltage ... ±5%)

Operating modes

Single/repetitive =
pulse counter: 0 to 9999, preselect counter 0 to 9999
Repetition: 0.5/1/5/10/20 or 25 Hz (air); 0.5/1/5 or 10 Hz (contact); continuous operation

Displaytext

LCD panel showing: charging voltage, discharge voltage, polarity, air-/contact-discharge, counter/preselect counter content, soft-key functions, battery monitor

Weight

NSG 434 with battery: 1.2 kg (2.6 lbs) approx.

Ambient conditions

Operation: +5 to +40°C, 20 to 80 % r.h. (non-condensing), 68 to 106 kPa

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
