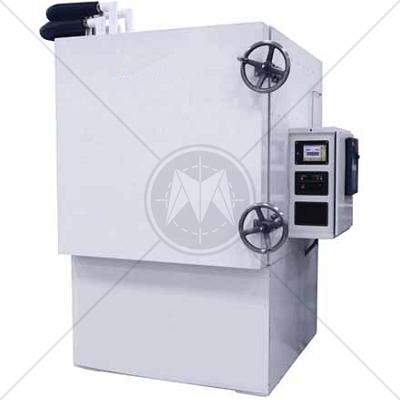

Tenney Tenneystrat Altitude Test Chamber -70°C to 177°C

• Description
• Features
• Specifications

Description

Tenney Strat Altitude Chambers

Tenney’s Tenneystrat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5 to 64 cubic feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry.

Features

• Vertical-down recirculating conditioning stream
• Highly efficient cascade refrigeration system with two semi-hermetic compressors
• Open-air nichrome wire heater elements
• Capacitance type absolute pressure transducer for pressure measurement
• Model T5STR- Non-corroding, vapor-injection humidity system with low-water protection
• Air pressure alarm output

Performance

• 70° C to + 177° C, ± 0.3° after stabilization
• Standard altitude conditions: Site level to 100,000 Feet (8.28 mm Hg / 8.28 Torr)
• Optional altitude conditions: Site level to 150,000 Feet (1.10 mm Hg / 1.10 Torr) Site level to 200,000 Feet (0.169 mm Hg / 0.169 Torr)
• Combined temperature and altitude: 60,000 feet maximum
• Standard humidity conditions (Models xxSTR only): 20% to 98% RH
• Control Accuracy: ±0.3°C and ±2% RH Controller VersaTenn V Controller

Controller

• Triple channel type controller
• Auto/ Manual Control
• Pentium class processor
• 8 MB Flash Disk On Chip storage
• USB Flash Disk port
• RS-232 communications
• Color touchscreen interface with real-time graphics, Windows CE Operating System, and latest software developments in test chamber control.
• Near infinite number of programs and steps
• 10 temperature control outputs
• 5 humidity control outputs
• 2 vacuum/ vent outputs
• 6 event outputs
