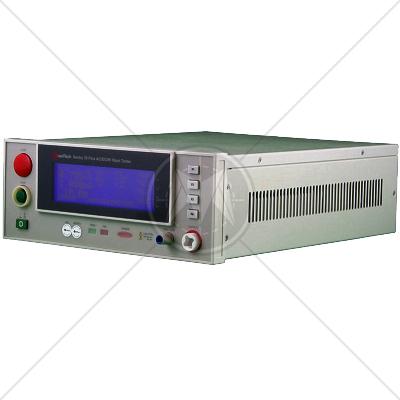

QuadTech Sentry 10 Plus AC Hipot Tester 5kV

• Description
• Features
• Specifications

Description

The Sentry 10 Plus AC Hipot Tester (CE Mark) performs AC dielectric withstand (hipot) tests. The test voltage is programmable from 50V to 5kV AC with a resolution of 1V. The current range is 1 to 20mA.

Program & Display Ground Continuity: The Sentry Plus Series can measure and display the resistance between the ground blade of the power cord and any exposed metal on the product.

Upgradeable: With the Sentry Plus Series, it is possible to add DC and/or IR test capability without purchasing a new instrument. The Sentry 10 Plus can be upgraded to a Sentry 20 or 30 Plus and the Sentry 20 Plus can be upgraded to a Sentry 30 Plus.

Meets UL Hipot Tester Requirements: The Sentry Plus instruments measure & display the output voltage directly at the output terminals. The instruments have both visual and audible failure indications, and after a failure the STOP switch must be pressed prior to another measurement.

Features

• AC Hipot Voltage 50 to 5000V, Output Current to 20mA
• Programmable Ground Continuity Check, 0.1 to 5ohms
• Programmable Ramp, Test, and Fall Times
• Fast Cutoff and Discharge of Device Under Test
• Programmable Hi/Lo Limits for Pass/Fail Testing
• Large LCD Display for Menu Programming and Test Results
• Internal Storage and Recall of 80 Test Setups
• Ground Fault Interrupt Shutdown for Operator Safety
• Front and Rear Panel Output Connections
• Front Panel Lockout Prevents Changes to the Test Setup
• Automatic Offset to Zero Out Stray Leakage Current
• Instruments Upgradeable, Sentry 10 to 20 to 30
• 3mA Current Limit per EN50191
• UL Listed and CE Marked
