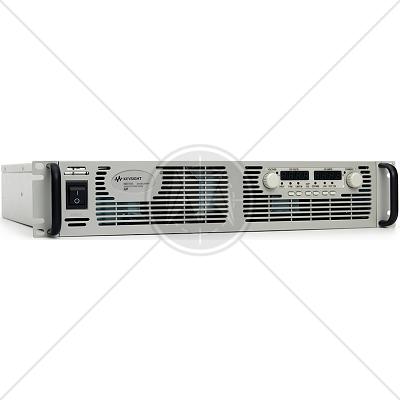

Keysight Technologies N8731A DC power supply gives you just the right performance — at just the right price — in a compact (2 U) package that provides stable output power, built-in voltage and current measurement.
This economical Programmable DC Power Supply offers many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing engineers in the aerospace/defense, automotive, component and communications industries.
DC Output Ratings
- Voltage: 8V
- Output Current: 400A
- Output Power: 3200W
Programming Accuracy
- Voltage: 0.05% + 4mV
- Current: 0.1% + 800mA
Output Ripple and Noise
|
3.3 kW Series
|
|
5 kW Series
|
|
Volts
|
Amps
|
Model
|
Volts
|
Amps
|
Model
|
|
0-8 V
|
0-400 A
|
N8731A
|
0-8 V
|
n/a
|
n/a
|
|
10 V
|
330 A
|
N8732A
|
10 V
|
n/a
|
n/a
|
|
15 V
|
220 A
|
N8733A
|
15 V
|
n/a
|
n/a
|
|
20 V
|
165 A
|
N8734A
|
20 V
|
250 A
|
N8754A
|
|
30 V
|
110 A
|
N8735A
|
30 V
|
170 A
|
N8755A
|
|
40 V
|
85 A
|
N8736A
|
40 V
|
125 A
|
N8756A
|
|
60 V
|
55 A
|
N8737A
|
60 V
|
85 A
|
N8757A
|
|
80 V
|
42 A
|
N8738A
|
80 V
|
65 A
|
N8758A
|
|
100 V
|
33 A
|
N8739A
|
100 V
|
50 A
|
N8759A
|
|
150 V
|
22 A
|
N8740A
|
150 V
|
34 A
|
N8760A
|
|
300 V
|
11 A
|
N8741A
|
300 V
|
17 A
|
N8761A
|
|
600 V
|
5.5 A
|
N8742A
|
600 V
|
8.5 A
|
N8762A
|
Standards
|
CISPR 11 |
|
CISPR 14 - 1 |
|
CISPR 14 - 2 |
|
CISPR 14 - 2 |
|
CISPR 16 - 1 |
|
CISPR 16 - 2 |
|
CISPR 16 - 3 |
|
CISPR 16 - 4 |
|
CISPR 22 |
|
CISPR 24 |
|
IEC/TR EN 61000 - 1 - 1 |
|
IEC/TR EN 61000 - 2 - 1 |
|
IEC/TR EN 61000 - 2 - 3 |
|
IEC EN 61000 - 3 - 2 |
|
IEC EN 61000 - 3 - 4 |
|
IEC/TC EN 61000 - 3 - 5 |
|
IEC EN 61000 - 4 - 2 |
|
IEC EN 61000 - 4 - 3 |
|
IEC EN 61000 - 4 - 4 |
|
IEC EN 61000 - 4 - 5 |
|
IEC EN 61000 - 4 - 6 |
|
IEC EN 61000 - 4 - 7 |
|
IEC EN 61000 - 4 - 8 |
|
IEC EN 61000 - 4 - 9 |
|
IEC EN 61000 - 4 - 11 |
|
EN 50 081 part 1 |
|
EN 50 081 part 2 |
|
EN 55 011 |
|
EN 55 013 |
|
EN 55 014 |
|
EN 55 015 |
|
EN 55 020 |
|
EN 55 022 |
|
EN 55 024 |
|
EN 50 082 part 1 |
|
EN 50 082 part 2 |
|
EN 50 093 |
|
FCC Part 15 |
|
MIL-STD - 461E |
|
»
