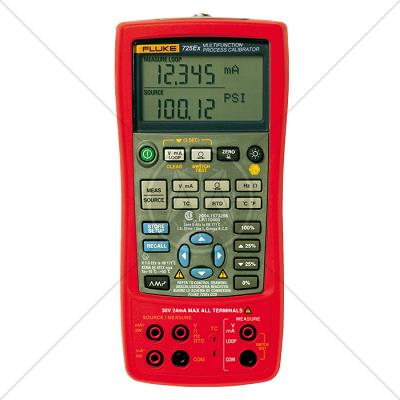

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator

Description

The 725Ex Intrinsically Safe Multifunction Process Calibrator is powerful yet easy-to-use. Combined with one of the (8) new Fluke-700PEx pressure modules, the 725Ex is able to calibrate almost any process instrument likely to need service in an area where explosive gasses may be present.

Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

Do you need to calibrate transmitters? The 725Ex split display lets you view input and output values simultaneously. For valve and I/P tests, you can source mA while measuring pressure. The 725Ex has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests.

From the moment you pick it up, the Fluke 725Ex is ready to perform. Its simple controls, without menus, make operation easy. Its memory functions make set up fast. And its rugged design lets it work as hard as you do.

Features

  • ATEX II 1 G Ex ia IIB 171°C KEMA 04ATEX 1303X
  • I.S. Class I, Division 1 Groups B-D, 171°C compliance
  • Measure Volts dc, mA, RTDs, thermocouples, frequency and ohms
  • Source or simulate Volts dc, mA, RTDs, thermocouples, frequency and ohms
  • Two channel simultaneous source and measure capability for calibration of transmitters
  • Power transmitters with internal loop supply
  • Store frequently-used test setups for later use
  • Pressure measurement to 3,000 psi/200 bar using any of the 8 intrinsically safe Fluke 700PEx Pressure Modules, calibrate pressure transmitters and I/P devices
  • Pressure switch test function to capture set, reset and deadband values
  • Compact size and weight
  • Simple, push-button user interface
  • Rugged and reliable, for field use

Specifications

Measurement Accuracy

Voltage DC

30.000 V

 0.02%+ 2 counts (upper display)

10.000 V

 0.02%+ 2 counts (lower display)

90.00 mV

 0.02%+ 2 counts

-10.00 mV to 75.00 mV

 0.025 % + 1 count (via TC connector)

Current DC

24.000 mA

 0.02%+ 2 counts

Resistance

0.0 to 400.0 Ω

 0.1Ω (4-wire), 0.15Ω (2- and 3-wire)

401 to 1500 Ω

 0.5Ω (4-wire), 1Ω (2- and 3-wire)

1500 to 3200 Ω

 1Ω (4-wire), 1.5Ω (2- and 3-wire)

Frequency

2.0 to 1000.0 CPM

 0.05 % + 1 count

1.0 to 1100.0 Hz

 0.05 % + 1 count

1.00 to 10.00 kHz

 0.05 % + 1 count

Sensitivity

 1 V peak-to-peak-minimum

Pressure

Accuracy

 from 0.025% of range using any of 8 intrinsic safe pressure modules.


 (for detailed specifications refer to pressure modules in options and accessories)


 Modules available for differential, gauge, vacuum, absolute, dual and high pressure.

Source Accuracy

Voltage DC

100.00 mV

 0.02%+2 counts

10.000 V

 0.02%+2 counts

-10.00 mV to 75.00 mV

 0.025 % + 1 count (via TC connector)

Current DC

24.000 mA (Source)

 0.02%+ 2 counts

24.000 mA (Simulate)

 0.02%+ 2 counts

Resistance

15.0 to 400.0 Ω

 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)

401 to 1500 Ω

 0.5 Ω(excitation current 0.05 to 0.8 mA)

1500 to 3200 Ω

 1 Ω(excitation current 0.05 to 0.4 mA)

Frequency

2.0 to 1000.0 CPM

 0.05%

1.0 to 1100.0 Hz

 0.05%

1.00 to 10.00 kHz

 0.25%

Waveform:

 5 V p-p squarewave, -0.1 V offset

RTDs and Thermocouples

Measure Accuracy:

NI-120

 0.2 °C

PT-100 (385)

 0.33 °C

PT-100 (393)

 0.3 °C

PT-100 (JIS)

 0.3 °C

PT-200 (385)

 0.2 °C

PT-500 (385)

 0.3 °C

PT-1000 (385)

 0.2 °C

Resolution:

 0.1 °C

J:

 0.7 °C

K:

 0.8 °C

T:

 0.8 °C

E:

 0.7 °C

R:

 1.8 °C

S:

 1.5 °C

B:

 1.4 °C

L:

 0.7 °C

U:

 0.75 °C

N:

 0.9 °C

Resolution

 J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F

XK

 0.6°C

BP

 1.2°C

Source Accuracy:

NI-120

 0.2 °C

PT-100 (385)

 0.33 °C

PT-100 (393)

 0.3 °C

PT-100 (JIS)

 0.3 °C

PT-200 (385)

 0.2 °C

PT-500 (385)

 0.3 °C

PT-1000 (385)

 0.2 °C

Resolution:

 0.1 °C

Note:

 Accuracy stated for 4-wire measurement.

J:

 0.7 °C

K:

 0.8 °C

T:

 0.8 °C

E:

 0.7 °C

R:

 1.4 °C

S:

 1.5 °C

B:

 1.4 °C

L:

 0.7 °C

U:

 0.75 °C

N:

 0.9 °C

Resolution

 J, K, T, E, L, N, U: 0.1 °C, B, R, S: 1 °C

XK

 0.6°C

BP

 1.2°C

Specifications

Ramp Functions

Source functions:

 Voltage, current, resistance, frequency, temperature

Ramps

 Slow ramp, Fast ramp, 25% step-ramp

Loop Power Function

Voltage:

 12 V

Accuracy:

 10%

Maximum current:

 22 mA, short circuit protected

Step Functions

Source functions:

 Voltage, current, resistance, frequency, temperature

Steps

 25% of range, 100% of range

Safety Specifications

Agency Approvals


 ATEX II 1 G Ex ia IIB 171°C


 I.S. Class I, Division 1 Groups

Mechanical & General Specifications

Size


 130 x 236 x 61 mm


 5.188" x 9.291" x 2.402"

Weight


 0.85 kg (1.874 lbs.)

Batteries


 4 AA alkaline batteries

Warranty


 Three year

Battery Replacement


 Separate battery compartment, accessible without breaking calibration seal

Side port connections


 Pressure module connector

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
