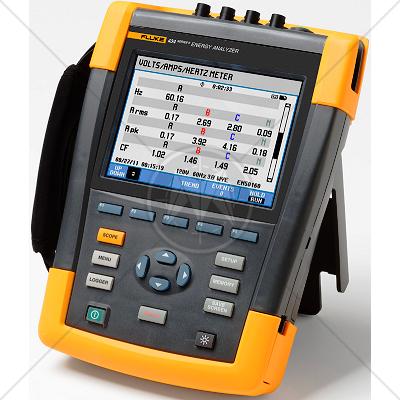

Fluke 434/PWR Three- Phase Power Analyzer

Description

The Fluke 434/PWR power analyzer is the ideal tool for finding energy waste in commercial and factory buildings and equipment. Electricians, field service engineers and maintenance technicians can use this special edition instrument to conduct energy consumption studies and electrical load analysis, and to perform power quality logging and analysis according to EN 50160. Fluke's 434/PWR is a complete three-phase troubleshooting tool that measures virtually every power system parameter: voltage, current, frequency, power, energy consumption, cos f or power factor, unbalance, and harmonics and inter-harmonics.

Features

  • Captures events like dips and swells, interruptions and rapid voltage changes, based upon ½ cycle rms values
  • Unique AutoTrend gives you fast insight into changes over time
  • With a single push of a button, the unique System Monitor gives you an overview of power system performance. It also checks that incoming power complies to EN50160 limits or to your own custom specifications
  • Logger:
    • Detailed, user-configurable long-term recording gives you the MIN, MAX and AVG readings of up to 100 parameters on all four phases.
    • Averaging time can be selected down to 0.5 seconds (or 1 minute for 1 day’s recording, 10 minutes for 1 week, 30 minutes for 1 month or more
  • Two groups of four channels: simultaneously measure voltage and current on all three phases and neutral
  • Auto Scaling:
    • Easier trend analysis with automatic scaling of the vertical axis – so you will always view the waveforms on a full display
  • Meets the stringent 600 V CAT IV, 1000 V CAT III safety standard required for measurements at service entrance
  • Extensive data analysis: cursors and zoom can be used ‘live’ while taking the measurements, or ‘offline’ on stored measurement data. The stored measurements can also be transferred to Power Log software

Specifications

Inputs

Number:

 4 voltage and current (3 phases + neutral)

Maximum voltage:

 1000 Vrms (6 kV peak)

Maximum sampling speed:

 200 kS/s on each channel simultaneously

Volt/Amps/Hertz

Vrms (AC + DC)



Measurement range:

 1 ... 1000 V

Accuracy:

 0.1% of Vnom




Vpeak



Measurement range:

 1 ... 1400 V

Accuracy:

 5% of Vnom




Crest factor, voltage



Measurement range:

 1.0 ... > 2.8

Accuracy:

 ±5%




Arms (AC + DC)



Measurement range:

 0 ... 20 kA

Accuracy:

 ±0.5% ± 5 counts




Apeak



Measurement range:

 1.4x rms value

Accuracy:

 5%




Crest factor, A



Measurement range:

 1 ... 10

Accuracy:

 ±5%




Hz 50 Hz nominal



Measurement range:

 40 ... 70 Hz

Accuracy:

 ±0.01 Hz

Dips and swells

Vrms (AC+DC) ²



Measurement range:

 0.0% … 100% of Vnom

Accuracy:

 ±0.2% of nominal voltage




Arms (AC+DC) ²



Measurement range:

 0 ... 20 kA'

Accuracy:

 ±1% ± 5 counts

Harmonics

Harmonic (interharmonic) (n)



Measurement range:

 DC, 1..50; (Off, 1..49) measured according to IEC 61000-4-7




Vrms



Measurement range:

 0.0 … 1000 V

Accuracy:

 ±0.05% of nominal voltage




Arms



Measurement range:

 0.0 … 4000 mV x clamp scaling

Accuracy:

 ±5% ± 5 counts




Watts



Measurement range:

 Depends on clamp scaling and voltage

Accuracy:

 ±5% ± n x 2% or reading, ± 10 counts




DC voltage



Measurement range:

 0.0 … 1000 V

Accuracy:

 ±0.2% of nominal voltage




THD



Measurement range:

 0.0 … 100.0%

Accuracy:

 ±2.5% V and A (± 5% Watt)




Hz



Measurement range:

 0 … 3500 Hz

Accuracy:

 ± 1 Hz




Phase angle



Measurement range:

 -360º ... +360º

Accuracy:

 ± n × 1.5º

Power and energy

Watt, VA, VAR



Measurement range:

 1.0 … 20.00 MVA¹

Accuracy:

 ±1% ± counts




kWh, kVAh, kVARh



Measurement range:

 00.00 …200.0 GVAh¹

Accuracy:

 ± 1.5% ± 10 counts




Power Factor/ Cos Ф / DPF



Measurement range:

 0…1

Accuracy:

 ± 0.03

Unbalance

Volts



Measurement range:

 0.0 … 5.0%

Accuracy:

 ±0.5%




Current



Measurement range:

 0.0 … 20%

Accuracy:

 ± 1%

Logging

Sampling:

 5 readings/sec continuous sampling per channel

Readings:

 User selectable up to 100 readings on 3 phases and neutral simultaneously

Averaging:

 2hr down to 0.5s user selectable

Memory:

 User selectable up to 7MB of shared memory

Recording time:

 User selectable, depends on selected number of readings

Zoom:

 Yes

Autotrend recording

Sampling:

 5 readings/sec continuous sampling per channel

Memory:

 1800 min, max and avg points for each reading

Recording time:

 Up to 450 days

Zoom:

 Up to 12x horizontal zoom

Memory

Screens & data:

 50, shared memory divided between logging, screens and data sets

Notes

¹

 Depending on clamp scaling

²

 Value is measured over 1 cycle, commencing at a fundamental zero crossing, and refreshed each half-cycle

Environmental Specifications

Operating Temperature


 0 ºC to +50 ºC

Safety Specifications

Safety


 EN61010-1 (2nd edition) pollution degree 2; 1000 V CAT III / 600 V CAT IV ANSI/ISA S82.01

Mechanical & General Specifications

Size


 256 x 169 x 64 mm

Weight


 2 kg

Battery Life

Rechargeable NiMH pack (installed):

 >7 hours

Battery charging time:

4 hours typical

Shock & Vibration

Shock:

 30 g

Vibration:

 3 g according to MIL-PRF-28800F Class 2

Case


 Rugged, shock proof with integrated protective holster, IP51 (drip and dust proof)

Warranty


 3 years

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
