Fluke 1520 Megohmmeter

• Description
• Features
• Specifications

Description

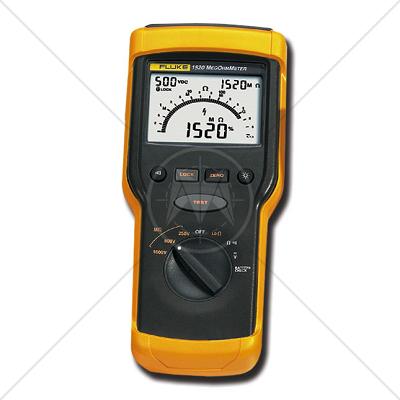

The Fluke 1520 Megohmmeter is a handy insulation resistance tester that also measures voltage and checks connections with its lo-ohms function.

A proven workhorse, the Fluke 1520 can make up to 5,000 insulation resistance tests, more than any other insulation tester, without changing batteries. A dual analog/digital display makes it easy to use. Thanks to its superb accuracy, endurance, and handheld size, the Fluke 1520 is a long-standing tool of choice for demanding plant and utilities work.

As a safety feature, the Fluke 1520 will switch automatically to a voltage tester only when voltage is greater than 30V (ac or dc).

Features

• Large, backlit LCD with analog bar graph and digital display
• Three output voltages for insulation resistance testing: 250V, 500V, 1000V
• Insulation resistance testing up to 4000 M Ohms; switches automatically to voltage measurement when voltage is greater than 30V ac or 30V dc.
• AC/DC voltage measurement up to 600V
• Lo-Ohms function for testing connections
• Performance up to 5000 insulation resistance tests per EN61557-2 without changing 4 C-cell batteries, with battery-life indicator and auto shut-off.
• Last reading memory display
• Auto discharge of capacitive voltage charges
• Rugged, splash-proof case with impact absorbing holster.
