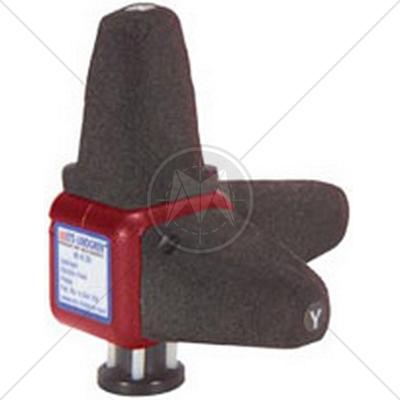

ETS-Lindgren HI-6105 Electric Field Probe 100 kHz – 6 GHz

Description

The laser-powered HI-6105 Electric Field Probe embodies the latest innovations in isotropic sensor design and low noise, miniaturized electronics. Designed to be single range reading, the HI-6105 can read data continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually or summed.

Fiber optic signal and power lines link the Model HI-6105 probe to either the model HI-6100 Field Monitor or as a direct connect to a PC with the HI-6113 Laser Data Interface and ProbeView Laser Software.

The HI-6100 Field Monitor provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four probes can be displayed simultaneously.

The HI-6113 Laser Data Interface provides the laser power and communications for the HI-6105 Electric Field Probe. A USB connection to the PC allows for quick and easy data collection, using ProbeView Laser software.

Features

  • Laser Powered - permits extended testing
  • Frequency Response: 100 kHz - 6 GHz
  • Dynamic Range 0.5 to 800 V/m (Single Range)
  • Provides Individual and Summed Axis Values
  • A2LA Accredited Calibration Report
  • Suitable for MIL Standard Specs:
    -- MIL-STD 461F Radiated Susceptibility (RS)
  • Suitable for Automotive Specs:
    -- SAE J1113/27
    -- GM9120P
    -- GM93100GS
    -- GM9114P
  • Suitable for Commercial Specs: EN/IEC 61000-4-3 Radiated Immunities
  • Operates with most 3rd Party Immunity software

Specifications

Electrical Specifications

Detection

Isotropic (X, Y and Z Axis Readings)

Frequency Range

100 kHz to 6 GHz

Frequency Response

500 kHz to 2 GHz +1.0, -2.5 dB
2 to 5.5 GHz +3.5, -4.0 dB
5.5 to 6 GHz +2.0, -6.0 dB

Frequency Response with Correction

100 kHz to 6 GHz ± 0.9 dB

Dynamic Range

0.5 - 800 V/m (Single Range)

Resolution

0.01 V/m

Isotropic Deviation

± 0.5 dB @ 400 MHz

Linearity

± 0.5 dB @ 27 MHz

Sample Rate (Typical)

70 samples/second maximum >1500 V/m CW

Overload Withstand

>1500 V/m CW

Physical Specifications

Physical Interface

Duplex Optical Fiber (62.5 micron multimode)
FC Connectors for laser cable, integral 1m optical cable
ST Connector for transmitter cable, Integral 1m optical cable

Operating Range

10 to 40°C , 5-95% Relative Humidity Non-condensing

Cubical Housing Length

32 mm   (1.26 inches)

Cubical Housing Width

32 mm   (1.26 inches)

Cubical Housing Height

32 mm   (1.26 inches)

Sensor Protection Caps Height

43 mm   (1.69 inches)

Weight

80 g   ( 2.82 ounces )

Mounting

1/4 - 20 UNC Internal Thread

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
