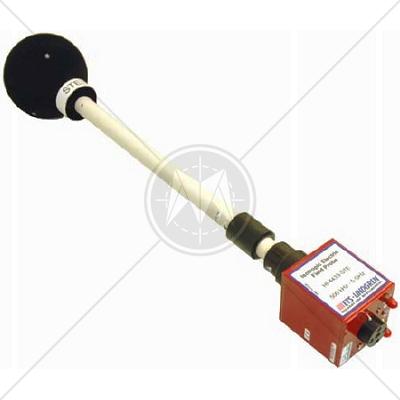

ETS-Lindgren HI-4433-STE Electric Field Probe 500 kHz – 5 GHz

Description

The HI-4433 series probes feature Automatic Continuous Zeroing.

This Automatic Continuous Zeroing feature removes the need for internal zero adjustment and eliminates temperature drift errors associated with other instrumentation. The Automatic Zero feature allows the meter to be used immediately upon power-up, and eliminates concerns about finding a zero.

Features

  • Automatic Continuous Zeroing
  • Fiber Optic Technology
  • Data from each axis can be viewed individually
  • For use with HI-4460 and HI-4416 Readouts, HI-4413P RS232 Fiber Optic Modem

Specifications

Electrical Specifications

Frequency Minimum

500 kHz

Frequency Maximum

5 GHz

Battery

20 Hours Continuous Operations
3.6 Vdc, 1400 mA-Hour Rechargeable NiCad
One Fast Charger Included

Calibration Accuracy

absolute accuracy +/- 1.0 dB
at cal points +/- 0.5 dB

Data Sample Rate

1 - 24 Samples per Second

Detection

Isotropic

Dynamic Range

30 - 3000 V/m

Isotropic Deviation

+/- 0.5 dB

Linearity

+/- 0.5 dB full scale

Response Time

86 mSec (min)

Physical Specifications

Length

560 mm   (22.05 inches)

Probe Diameter

102 mm   (4.02 inches)

Weight

.54 kg   ( 1.19 lb )

Specifications

Environmental Ranges

10 - 40°C (50 - 104°F)
5 - 95% Relative Humidity, Non-Condensing

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
