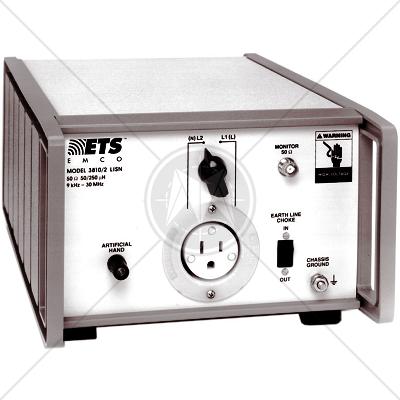

ETS-Lindgren 3816-2 LISN 9 kHz - 30 MHz

• Description
• Features
• Specifications

Description

ETS-Lindgren Line Impedance Stabilization Networks (LISNs) are multi-line low pass filter networks used for conducted emissions measurement.

It is placed between the power mains and the EUT (Equipment under Test) to stabilize line impedance, provide a 50 ohm RF connection, and eliminate unwanted RF signals from the line supply. In addition, LISNs can be used to predict radiated emissions for diagnostic and pre-compliance testing.

The Model 3816/2 is designed and tested in accordance with IEC Publication 1010, Safety Requirements for Electronic Measuring Apparatus. It has also received CSA safety certification from the Canadian standards Association, a further indication of ETS-EMCO's commitment to safety.

Features

• Insulated Plugs for Safer Power Connections
• Coils Matched for Application
• Individually Calibrated
• One Piece, Multi-Line Design for Convenience
