EM TEST UCS 500N5V Combo Wave (Surge) Generator 5kV IEC/EN 61000-4-5

• Description
• Features
• Specifications

Description

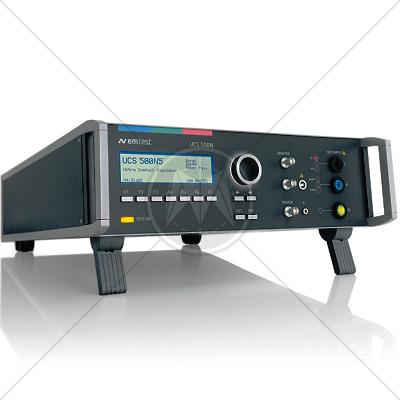

The UCS 500N5V is a new dedicated Surge generator based on the successful UCS 500N series of ultra-compact simulators. Offering all the benefits of the well-known UCS 500N5 it is designed as a Surge generator only. This makes it the full performing Surge tester as per IEC/EN 61000-4-5 with the best benefit-to-cost ratio yet upgradeable to include other test abilities such as EFT/Burst and PowerFail.

Apart from its built-in single phase test capability it is extendable for testing three-phase DUTs by means of automatically controlled external coupling networks up to 100A.

The UCS 500N5V offers an extended test voltage/current range up to 5kV/2.5kA for testing far beyond the basic requirements. This makes it THE tool for development testing as well as fully-compliant standard tests as per IEC/EN 61000-4-5.

Surge testing being a destructive test DUTs may need to be protected against total distruction during test. The EM TEST "em.safe" helps as current limiters can be programmed to limit the surge current in case of DUT failures.

With its built-in single phase CDN up to 300V/16A AC/DC the UCS 500N5V copes with all common mains supply voltages. Three-phase CDNs extend its applicability for three-phase testing of DUTs with a nominal current of 100A and more.

The UCS 500N5V can be operated manually from the front panel offering pre-programmed standard test routines. Yet it also offers the Quick Start test where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT and the ability of programming user defined test routines.

USB and GPIB interfaces are provided for remote control via iec.control software. Fail inputs allow controlling an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy surge pulse measurement and verification. Safety features such as interlock and warning lamp control are available.

Features

• Fully compliant to IEC 61000-4-5
• Surge voltage up to 5kV
• Surge current up to 2.5kA
• Built-in single phase coupler 300V/16A
• Programmable current limiters
• Monitor outputs for peak voltage and peak current
• Standard and user test routines
• Manual operation from front panel
• USB and GPIB-Bus for remote control
• Fail inputs
• Control of external three-phase couplers
• Pulse magnetic field tests with optional accessories
