EM TEST OCS 500N6 Oscillatory Wave Simulator EN/IEC 61000-4-12/4-18

• Description
• Features
• Specifications

Description

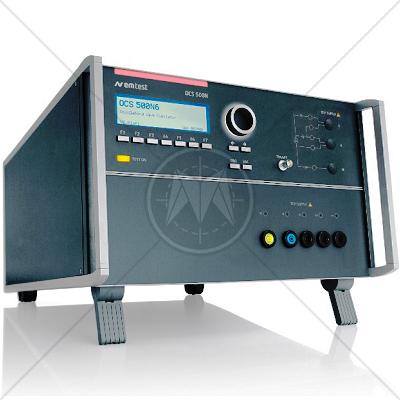

The OCS 500N6 is the standalone tester. Equipped with the Ringwave capability of up to 6kV it also complies with the Ringwave requirements of the American ANSI/IEEE C62.41 standard.

The two Damped Oscillatory Waves with 100 kHz and 1 MHz frequency reach 3kV each. The Damped Oscillatory Waves not only comply with EN/IEC 61000-4-18 requirements but also correspond with the requirements to test protective relays and relay systems as per ANSI/IEEE C39.70.

The Damped Oscillatory Waves are also used to generate magnetic fields as per EN/IEC 61000-4-10 into a magnetic field coil (e.g. MS 100N).

The OCS 500N6 comes with a built-in coupling/decoupling network for either single phase or three-phase and is rated for currents of 16A or 32A per line.

The OCS 500N6 can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow controlling an ongoing test sequence based on the status of the EUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.

Pre-programmed Standard Test routines allow highest user convenience. Still the OCS 500N6 offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.

Features

• Standalone test generator
• Includes Ringwave up to 6kV
• Includes Damped Oscillator Waves up to 3kV
• Built-in CDN, single phase or three-phase up to 32A
• Front panel operation
• Standard Test routines
• USB and GPIB interfaces
