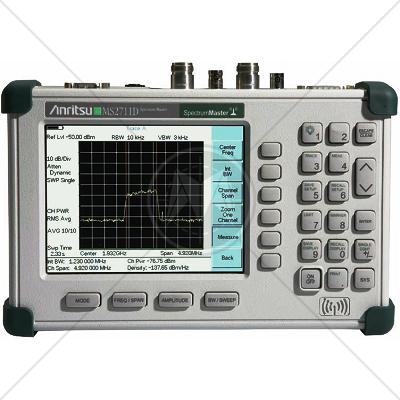

Anritsu MS2711D Handheld Spectrum Analyzer 100 kHz - 3 GHz

Description

Covering the 100 kHz to 3.0 GHz frequency range, with a built in standard pre-amplifier, the MS2711D handheld spectrum analyzer is the proven solution for installing, provisioning, maintaining and troubleshooting wireless systems and RF frequency spectrum interference issues. This portable spectrum analyzer features a built-in standard preamplifier in a compact, handheld design that can go "anywhere, anytime" with no backpack required. Ideal for field environments and applications that require mobility, such as site surveys and on-site system testing.

The Anritsu Spectrum Master is designed for monitoring, measuring, and analyzing signal environments. Typical measurements include: in-band interference, transmit spectrum analysis, antenna isolation and cell area interference. A full range of marker capabilities such as peak, center and delta functions are provided for faster, more comprehensive measurement of displayed signals. Multiple limit lines are available for creating quick, simple pass/fail measurements. A menu option provides for an audible beep when the limit value is exceeded.

Features

  • Wide Dynamic Range
  • Built-in Preamplifier
  • Built-in Tracking Generator Option
  • Dynamic Attenuation
  • One-Button Measurements
  • Trace Averaging
  • 50O to 75O Adaptable Interface
  • Multilingual User Interface
  • Quick Zoom-in, Zoom-out Display
  • Reference Level Offset

Specifications

Frequency Range

100 kHz to 3.0 GHz (tunable to 9 kHz)

Frequency Reference

Aging

+ 1 ppm/yr

Accuracy

+ 1 ppm

Frequency Span

10 Hz to 2.99 GHz in 1,2,5 step selections in auto mode, plus zero span

Sweep Time

1.1 s full span; 50s to 20s, selectable in zero span

SSB Phase Noise

–75 dBc/Hz, 30 kHz offset @ 1 GHz

Spurious Responses

Input Related

< 45 dBc

Spurious

Residual Responses

90 dBm, 10 kHz RBW, pre-amp on

Resolution Bandwidths

Selections

10 Hz to 1MHz in 1-3 sequence

Accuracy

± 5% typical

Selectivity

Video Bandwidth

5% 3 Hz to 1 MHz in 1-3 sequence

Amplitude

Measurement Range

+20 to –135 dBm +43 dBm, peak, without damage 50 VDC

Displayed Average Noise Level

-135 dBm 10 MHz typical with preamplifier on

-115 dBm typical <10 MHz (input terminated, 0 dB attenuation, RMs detection, 100 Hz RBW with preamplifier on

Dynamic Range

> 65 dB

Total Level Accuracy

1.5 dBm max (1 dBm typical)

 >10 MHz to 3 GHz 2 dBm typical

<10 MHz for input signal levels –60 dBm (excludes input VSWR mismatch)

Scale Mode

dBm, dBV, dBmV, dBμV

Display Range

2 to 15 dB/div in 1 dB steps.

Ten divisions displayed

Attenuator

Range

0 to 51 dB, selected manually or automatically coupled to the reference level

Resolution

1 dB steps

Display

Type

Monochrome LCD (with backlit capability)

Resolution

640 x 480

Marker Modes

6 Markers; standard, delta, marker to peak and marker to center

Memory

Trace Storage

200 stored traces

Setup Storage

10 test setups

Displayed Traces

2

Inputs

RF Input

50-Ohms

Connector

Type N Female

RF Input VSWR

2.0:1

RS-232 Interface

Type

Null modem

Baud Rate

 9600,19.2k, 38.4k, 56k, 115.2k Baud

Printer Interface

Drivers

Epson ESC/P

Epson ESC/P RAST

Epson ESC/P2

HP PCL3

General Characteristics

Dimensions

10.0 in. x 7.0 in. x 2.4 in.

25.4 cm x 17.8 cm x 6.1 cm

Weight

4.9 lbs (2.2 kg) includes battery

Power Requirement

Battery Operation (standard)

NiMH battery

AC/DC Operation (optional via external DC input)

+ 12.5 to +15 Vdc, 1100 mA max

Environmental Temperature

Operating

-10 to +50°C, humidity 85% or less

Non-operating

–20 to +75°C

Electromagnetic Compatibility

Complies with European community requirements for CE marking

Safety

Conforms with EN 61010-1 for class 1 portable equipment

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
