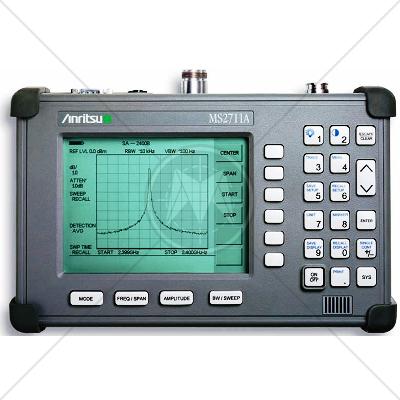

Anritsu MS2711A Handheld Spectrum Analyzer 100 kHz - 3 GHz

• Description
• Features
• Specifications

Description

The MS2711A Handheld Spectrum Analyzer provides the "ultimate" in measurement flexibility for field environments and applications requiring mobility. Unlike traditional spectrum analyzers, the MS2711A features a rugged, ultra-lightweight, battery-operated design that enables users to conduct spectrum analysis measurements - anywhere, anytime.

Providing complete freedom from AC/DC power requirements, the MS2711A enables you to locate, identify, record and solve communication systems problems quickly and easily, without sacrificing measurement accuracy.

Whether you are installing, maintaining, or troubleshooting a modern wireless communication system, the MS2711A provides exceptional performance combined with ease-of-use and broad functionality - making it an ideal solution for engineers and technicians who conduct field measurements in the 100 kHz to 3.0 GHz frequency range.

The Lightest Spectrum Analyzer Available
weighing only 4.0 lbs. (1.8 kg), the MS2711A is the lightest spectrum analyzer available.

Rugged and Reliable
Because the MS2711A handheld spectrum analyzer was designed specifically for field environments, it can easily withstand the day-to-day punishment of field use. Rugged packaging also keeps the MS2711A performing in harsh environments.

With its lightweight NiMH battery, the MS2711A operates continuously for over two hours on a single charge. Built-in energy conservation features allow battery life to be extended beyond an eight-hour workday. The MS2711A can also be operated from a 12.5 Vdc source such as an AC-DC adapter or automotive cigarette lighter adapter that also simultaneously charges the battery.

Features

• Handheld, battery-operated design
• Lightweight at only 4.9 lbs
• Noise Level < -115 dBm
• Quick Zoom-in, Zoom-out display in 1-2-5 sequence
• RBWs: 10 kHz, 30 kHz, 100 kHz and 1 MHz
•  VBWs: 100 Hz to 300 kHz in 1-3 sequence
•  Automatic and manual attenuator control
•  Amplitude Accuracy +/- 2 dB
• Dedicated One-button measurements
• Trace Averaging
• Reference Level Offset
•  Store up to 10 measurement test set-ups
•  Save up to 200 measurement traces
•  Alphanumeric labeling of saved measurements
•  Automatic time and date stamp of saved data
•  Rechargeable/field-replaceable battery
•  4 Markers, limit lines
• RS232 Interface
