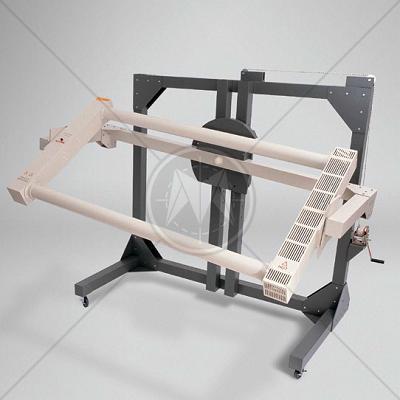

Amplifier Research ATP10K100MM4 RF Field Generator 10kHz–100MHz 3kW

Description

Amplifier Research ATP10K100MM4 is a broadband, high power RF Field Generator. The unit is capable of generating intense fields in a large volume over a wide frequency range. Twin conductor transmission lines produce both E (electric) and H (magnetic) fields (see Figure 1).

The ATP10K100MM4 is a balanced parallel conductor transmission line that is 2.4 meters long and 1.0 meter wide. It has been designed to match free space impedance of 377 ohms, which results in extremely efficient production of RF fields. Matching transformer and load resistors are built in and provide excellent VSWR characteristics over a frequency range of 10 kHz to 100 MHz. To achieve maximum flexibility in use, the ATP10K100MM4 can be rotated 360 degrees and the field generator can be adjusted to accommodate the unit under test up to a maximum center line height of 68 inches (172.72cm). Items small enough to fit between the elements can be placed on a pedestal or table and the ATP10K100MM4 positioned to surround them. For larger items, the height and angle of the radiating elements must be changed for maximum field strength.

This M4 version of the ATP10K100M comes with a special stand which allows rotation of the field generation in three axes as well as height adjustment. This will allow the generator to be placed vertically and permit testing of upright objects such as equipment racks.

Features

  • Broadband
  • Unique Design
  • High Power
  • Free Space Fields from a Broadband Transmission Line
  • Wideband Frequency Range
  • Up to 500 V/M between the Elements
  • 360° Rotation Accommodates any Test Object

Specifications

POWER INPUT, CW

3000 watts maximum

FREQUENCY RANGE

10 kHz–100 MHz

INPUT IMPEDANCE

50 ohms

VSWR

Maximum

2.0:1; 10 kHz–100 MHz

Maximum

6:1; 10 kHz–20 kHz above 1 KW input

ELECTRIC FIELD INTENSITY

See Graph (datasheet)

RF INPUT CONNECTOR

Type 7-16 DIN female

COOLING

Natural convection to 40° C ambient temperature

WEIGHT

159 kg (350lb)

SIZE (W x H x D)

261.1 x 215.4 x 141.7 cm (102.8 x 84.8 x 55.8 in)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
