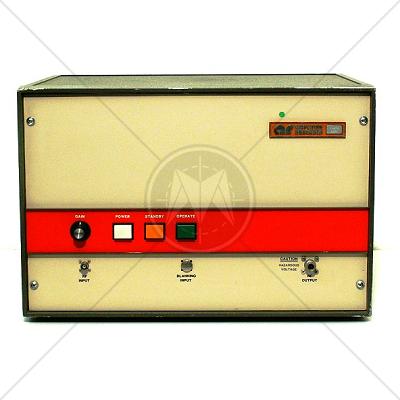

Amplifier Research 100L-M9 RF Amplifier

Description

The Amplifier Research 100L RF Power Amplifier delivers up to 200 Watts of CW Power into 50 Ohms from 1 MHz to 200 MHz.

Features

Specifications

Power Output

200W CW minimum into 50 ohms

Frequency Response

1MHz to 200MHz instantaneously

Flatness

± 1.5dB at 1.0 mill watt input

Input Power for Rated Output

1.0 mill watt

Power Gain:

50 dB minimum

Primary Power:

115 ± 10% VAC, 50/60 Hz, 30 Amp Service

RF Connectors

Input

Type BNC

Output

Type N

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
