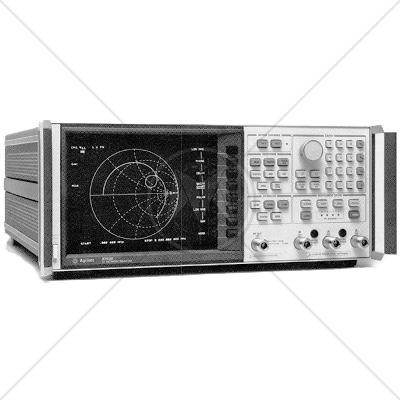

Agilent 8753B Network Analyzer 300 kHz - 3 GHz

• Description
• Features
• Specifications

Description

The 8753B provides excellent RF network measurements for the lab and production test areas. The integrated synthesized source provides 100 mW of output power, 1 Hz frequency resolution, and linear, log, list, power, and CW sweep types. Three tuned, 300 kHz to 3 GHz receivers allow versatile independent power measurements or simultaneous ratio measurements over a 100 dB dynamic range. The instrument has a 0.0-5 dB dynamic accuracy over a 40 dB range. It can also be used for swept harmonic measurements and time domain analysis.

Features

• 300 kHz to 6 GHz
• Integrated 1Hz resolution synthesized source
• Direct save/recall to an external disc drive
• Time domain analysis
• Execute complex test procedures with the test sequence function
• 100 dB of dynamic  range
• Group delay and deviation from linear phase
• 001 dB. 0.01 deg, 0.01 nanosec marker resolution
• Built in accuracy enhancement
• Swept harmonic measurements
