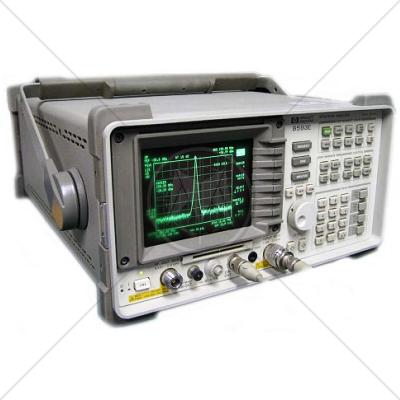

Agilent 8593E Spectrum Analyzer 9 kHz - 22 GHz

• Description
• Features
• Specifications

Description

The 8590 Series offers a wide range of performance, features, and optional capability to meet your measurement needs. Standard models offer RBW from 1 kHz to 3 MHz and amplitude as low as -115 dBm to +30 dBm, optionally down to 30 Hz RBW & -130 dBm. One-button measurement routines include FFT, ACP and TOI. Optional personality cards support applications like CATV, component test, EMC, light wave, and wireless communications.

Available instrument options include HP-IB or RS-232 ports with a parallel printer port, tracking generator, narrow RBW, time-gated spectrum analysis, AM/FM demodulation, quasi-peak detector, digital demodulation, and more.

Features

One-button measurements

• Adjacent channel power Measures the adjacent channel power ratio in dB of the upper and lower adjacent channels.
• Channel power Measures the total power in a specified bandwidth.
• Occupied bandwidth Measures the 99.99% to 1% power bandwidth of a spectrum.
• Third-order intercept calculates the TOI of a distortion product.
• Percent AM Calculates the percent AM from the measured sidebands and fundamental.
• N dB points Measures the -1 to -80 dB bandwidth of the largest signal onscreen.

Advanced functions

• FFT measurements Provides an alternative method to examine amplitude modulation
• Gated measurements Provides time-gated spectrum analysis for bursted signals.
• DLP editor Allows creation and editing of simple DLPs.1
• Limit-line editor Allows time and frequency limit lines with pass/fail messages.

Additional capabilities

• Card reader Allows storage of data to memory cards and downloading of measurement personalities.
• Measurement personality Use any of the fifteen application-specific measurement personalities on memory cards.
• Downloadable program Alters analyzer capability with custom software.
• Display storage Stores entire display (including onscreen text) to a memory card.
• Trace/state storage Stores over 50 traces and states internally.
• External keyboard Controls analyzer, labels traces, and serves as input device for DLP1 editor.
• Internal option cardcage Expands analyzer capabilities with up to four circuit-card options.
• NTSC, PAL, SECAM monitor output provides a composite video out for use with external monitors and VCRs.

Selected Options

• Narrow resolution bandwidths Adds 30-Hz, 100-Hz, 200 Hz (EMI), and 300-Hz resolution bandwidths.
• AM/FM demodulator Demodulates AM and FM; outputs to internal speaker/earphone jack.
• Quasi-peak detector allows automatic and manual quasi-peak EMC measurements.
• TV Sync trigger Triggers on any video line in NTSC, PAL or SECAM formats.
• Fast time sweeps as fast as 2 microseconds per division in zero span.
• Precision frequency reference Provides improved frequency accuracy and stability.
• Tracking generator Built-In TGs up to 2.9 GHz for scalar and EMC measurements.
• Time-gated spectrum analysis Obtains spectral information on signals in the frequency domain that are separated in the time domain.
• TV display Displays TV picture for NTSC, PAL and SECAM formats.
• GPIB or RS-232 and parallel interface Provides connection for remote control and printer output.
• DSP, fast ADC and digital demodulator Adds modulation accuracy measurements for digital wireless communications.
• Noise figure Provides swept noise figure and gain capability.
