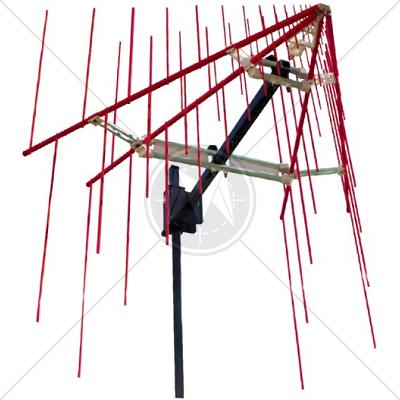

ETS-Lindgren 3150B Dual Stacked LPDA Antenna 80 MHz – 1 GHz

• Description
• Features
• Specifications

Description

THE MODEL 3150B DUAL STACKED LPDA is dual stacked log periodic dipole array antenna (LPDA), with each of the two separate LPDAs being 100 W antennas. When assembled in parallel, the result is a 50 W input impedance array. This array provides increased gain when compared to a single LPDA.

Low VSWR provides an excellent match with the amplifier, resulting in a high field generated related to input power. This antenna is suitable for situations where high fields need to be generated, such as military and in automotive EMC applications.

Frequency Range
The Model 3150B covers from 80 MHz to 1 GHz frequency range. The antenna can generate 200 V/m with less than 1 kW of input power at 1 m distance for the 100 MHz to 1 GHz range. When combined with ETS-Lindgren’s 3159 or 3158 High Power Biconical Antennas, the 3150B becomes integral part of ETS-Lindgren’s high severity level immunity solution.

VSWR Levels
The average VSWR is 2:1 across the frequency range.

Input Power
The Model 3150B comes fitted with a 7/16 coaxial connector, which can handle 3 kW at 1 GHz and up to 5 kW of input power at 80 MHz.

Immunity Testing
The Model 3150B generates high fields as required in automotive EMC applications per standards such as ISO 11541-2 or MIL-STD susceptibility testing. Additionally, this antenna can be used as a receive antenna.

Individually Calibrated
The 3150B is individually calibrated at 3 m per ANSI C63.5 and SAE ARP 958.

Features

• 80 MHz to 1 GHz Frequency Range
• Avg. 2:1 VSWR Across Range
• Up to 5 kW Max. Input Power
• Suitable for Immunity Testing
• Individually Calibrated
