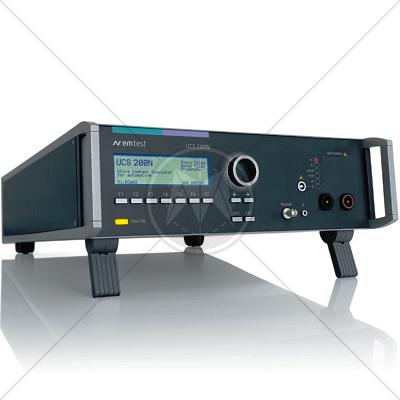

EM TEST UCS 200N Series Automotive Transient Simulator

Description

The UCS 200N Ultra-Compact Simulator series for Automotive Transients unifies the capabilities of an EFT/Burst simulator, a Micropulse simulator and the required coupling network into one box. The UCS 200N series is equipped to meet all international and car manufacturer specifications from around the globe. The built-in coupling network ranges up to 200A depending on the model. The built-in coupling network can be used and controlled by any unit of the LD 200N series, VDS 200N series and PFS 200N series. For tests beyond standard's requirements the waveform parameters of the Micropulse generator can be varied in a wide range by means of the FreeStyle mode.

All international standards and most car manufacturer requirements have been put into one box. All pulses are fully compliant to the specifications. Even more, the waveform parameters for micropulses can be varied in order to test with pulses beyond any standard specification.

Features

  • Built-in EFT/Burst generator module
  • Built-in Micropulse generator module (ISO 7637, JASO, SAE and NISSAN)
  • Built-in coupling network 60V, up to 200A
  • Built-in battery switch
  • Overcurrent protection
  • USB and GPIB-Bus
  • Emergency stop
  • Software for Windows Vista & Windows 7

Specifications

UCS 200N MODELS

UCS 200N50

Built-in coupling/decoupling network, 60V/50A, 100A@500ms

UCS 200N100

Built-in coupling/decoupling network, 60V/100A, 150A@500ms

UCS 200N150

Built-in coupling/decoupling network, 60V/150A

UCS 200N200

Built-in coupling/decoupling network, 60V/200A

INPUT

DUT supply +/-

DC voltage from VDS 200N or any other DC supply

Pulse 5, 7

From one LD 200N

EFT/BURST MODULE FOR TEST PULSES 3A/3B As per ISO 7637-2

Test voltage

25V - 1,000V ± 10%

Rise time

5ns ± 1.5ns

Pulse duration

150ns ± 45ns

Verification

As per Annex C of ISO 7637-2:2011 into 50ohm and 1,000ohm load

Source impedance

Zq = 50ohm

Polarity

Positive/negative (Pulse 3b/3a)

INTERFACE

Serial interface

USB

Parallel interface

IEEE 488, addresses 1 - 30

CN interface

To control the internal CN and battery switch

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
