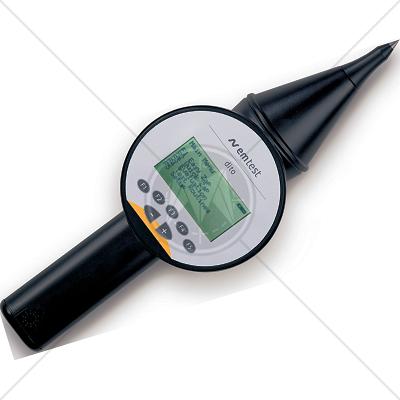

EM TEST DITO ESD Simulator 16.5kV as per EN/IEC 61000-4-2

Description

The EM Test Dito is the most advanced ESD tester to simulate ESD pulses as per EN/IEC 61000-4-2 and other standards requirements.

Electrostatic discharges either from a human body to any other part or between two different objects can cause persistent disturbances or even destruction to sensitive electronics or controls. Voltages of several 1,000 volts are generated.


Features

  • Most ergonomic design
  • Light weight (940g)
  • Interchangeable discharge tips
  • Interchangeable R/C networks
  • Power booster to perform long duration tests
  • Library of standard test routines
  • Test voltage measurement and control
  • Various test routines for testing and evaluation
  • High-sophisticated user guidance by test plans created by esd.control software
  • Optional fiber optic link between dito and computer (USB port)

Specifications

CD mode

500V - 10,000V +/-5%

AD mode

500V - 16,500V +/-5%

Resolution

100V steps

Holding time

More than 5 seconds

Polarity

Positive, negative

Test voltage

measured, indicated in the display

Single mode

Release of single pulses

Continuous mode

Continuous discharge up to

20Hz (AD) and 10Hz (CD)

Pulse release via software

Remote control from computer via fiber optic link (USB)

CD mode

EN/IEC 61000-4-2; 150pF/330ohm

Rise time

0.8ns +/- 25%

Current 1st peak

7.5A +/- 15% @2kV

15.0A +/- 15% @4kV

22.5A +/- 15% @6kV

30.0A +/- 15% @8kV

Current at 30ns

4.0A +/- 30% @2kV

8.0A +/- 30% @4kV

12.0A +/- 30% @6kV

16.0A +/- 30% @8kV

Current at 60ns

2.0A +/- 30% @2kV

4.0A +/- 30% @4kV

6.0A +/- 30% @6kV

8.0A +/- 30% @8kV

Weight

940 grams incl. battery

Case material

ABS; non-inflammable as per UL 94VO

Temperature

5°C - 40°C (operation conditions)

Rel. humiditiy

20% - 80% (operation conditions)

Battery charger

100V - 240V +/-10%; 50/60Hz

Charging time less than 1.5 hours

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
