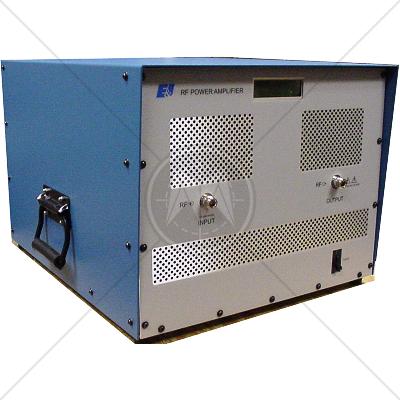

The 1140LA Amplifier is a rugged source of RF power for ultrasonic's, induction heating and laser modulation as well as plasma applications. It is a totally solid state solution employing RF DMoS FETs in the power amplification stages, offering simultaneous forward and reverse power readouts, and RS232 port for data collection. The 1140LA reflects E&I's commitment to reliable and robust RF power.
The 1140LA Amplifier is a rugged source of RF power for ultrasonics, induction heating and laser modulation as well as plasma applications. It is a totally solid state solution employing RF DMoS FETs in the power amplification stages, offering simultaneous forward and reverse power readouts, and RS232 port for data collection. The 1140LA reflects E&Is commitment to reliable and robust RF power.
Flexible Operation:
The 1140LA produces 1000 Watts of quasi linear class AB power over a frequency range of 10 kHz to 2 MHz, with a nominal power gain of 55 dB (±1dB). Operation over the entire frequency range is possible without the need for any switching. Operation up to 5 MHz is achieved with a lower power gain.
The front panel display provides simultaneous measurements of forward and reflected power as well as the units status. The RS232 connector at the rear of the unit can also be used to capture this data and reset the unit should a fault occur.
The E&I 1140LA is a 19 rack mount unit 8U high. It employs an integral power supply capable of operation from 120 - 240 VAC 50 60 Hz. The unit weighs approximately 108 lbs or 48 Kg.
· 1000 Watt RF Power
· 10 KHz – 2 MHz
· Class AB Performance
· Power Measurement - Forward & Reflected
· Solid State Reliability
· Forced Air Cooling
Primary Performance Characteristics
|
Start Frequency
|
10 kHz
|
Stop Frequency
|
2 MHz
|
Rated Power (P1dB)
|
1000 W
|
Power Gain
|
55 dB nominal
|
Gain Flatness
|
±1.0 dB
|
Input Power for Rated Output
|
5 mW or 0.7 dBm
|
Input Impedance
|
50 Ω
|
Output Impedance
|
50 Ω
|
Harmonic Level
|
Not Specified
|
Source requirements
|
Any signal / function generator or oscillator capable of 1.4 Vpp into 50 Ω
|
Ruggedness
|
Any load VSWR, any phase from Open to Short circuit without damage.
|
Class of Operation
|
Class AB
|
Specifications
|
AC Input
|
100 to 240 VAC
208 VAC 13 Amps Max
120 VAC 25 Amps Max
|
Connectors
|
BNC
|
Operating Temperature
|
0 to 45 ºC
|
Cooling
|
Forced Air Cooling
|
Front Panel Display
|
Indicates forward and reflected power
|
Front Panel Accuracy
|
±3% (up to 2 MHz)
|
Protection
|
INPUT: Unit will withstand input signal of +16 dBm without damage.
|
THERMAL: the unit can operate at 45O˚C ambient. If the internal temperature becomes too high the unit will shut down and an error message will appear on the front panel. The unit may be re-set by cycling the power or from the RS232 input.
|
Mismatch
|
The unit will tolerate any mismatch subject to thermal and current protection.
|
Form Factor
|
Weight
|
108 lb (49 kg)
|
Height
|
13.12 in 333.2 mm
|
Width
|
16.71 in 424.4 mm
|
Depth
|
20.1 in 510.1 mm
|
Standards
CISPR 11 |
CISPR 14 - 1 |
CISPR 14 - 2 |
CISPR 14 - 2 |
CISPR 16 - 1 |
CISPR 16 - 2 |
CISPR 16 - 3 |
CISPR 16 - 4 |
CISPR 22 |
CISPR 24 |
IEC/TR EN 61000 - 1 - 1 |
IEC/TR EN 61000 - 2 - 1 |
IEC/TR EN 61000 - 2 - 3 |
IEC EN 61000 - 3 - 2 |
IEC EN 61000 - 3 - 4 |
IEC/TC EN 61000 - 3 - 5 |
IEC EN 61000 - 4 - 2 |
IEC EN 61000 - 4 - 3 |
IEC EN 61000 - 4 - 4 |
IEC EN 61000 - 4 - 5 |
IEC EN 61000 - 4 - 6 |
IEC EN 61000 - 4 - 7 |
IEC EN 61000 - 4 - 8 |
IEC EN 61000 - 4 - 9 |
IEC EN 61000 - 4 - 11 |
EN 50 081 part 1 |
EN 50 081 part 2 |
EN 55 011 |
EN 55 013 |
EN 55 014 |
EN 55 015 |
EN 55 020 |
EN 55 022 |
EN 55 024 |
EN 50 082 part 1 |
EN 50 082 part 2 |
EN 50 093 |
FCC Part 15 |
MIL-STD - 461E |
|
