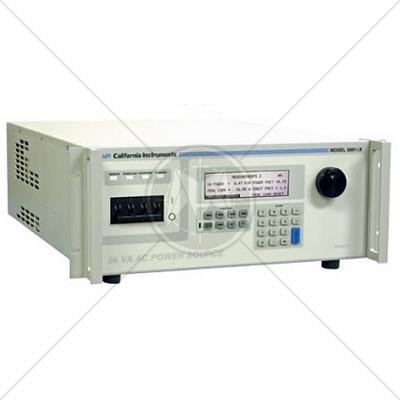

Operating Modes

Model

iX Series II

i Series II

Modes

AC, DC or AC+DC

AC or DC

AC Output Mode

Frequency

Range: 16.00-1000 Hz (Note: Voltage on 300 V range derates from 300 Vrms max at 500 Hz to 150 Vrms max at 1000 Hz; See V-F rating chart. below)

Total Power

3001i/iX: 3000 VA, 5001i/iX: 5000 VA, 9003i/iX: 3000 VA 3ø, with mode iX: 9000 VA 1ø, 10001i/iX: 10000 VA, 15001i/iX: 15000
VA, 15003i/iX: 5000 VA/ø 3ø, with mode iX: 15000 VA/ø 1ø

Load Power Factor

0 to unity at full output VA

AC Voltage Mode

Voltage Ranges

Output Noise
(20 kHz to 1 MHz)

Range

VLow

VHigh

AC

0-150 V

0-300 V

AC+DC

0-150 V

0-300 V

Load Regulation
(with ALC on)

< 0.2%

Load Regulation
(with ALC off)

< 0.5% DC to 100 Hz,
< 0.6% 100 Hz to 500 Hz in high voltage range,
< 2.2% 100 Hz to 500 Hz in low voltage range,
< 3% 500 Hz to 1000 Hz

Line Regulation

< 0.1% for 10% line change

< 250 mVrms typ., < 500 mVrms max.

Harmonic Distortion (Linear)

< 1% from 16 - 66 Hz, < 2% at 400 Hz, < 3% at 800 Hz (Full resistive load)

DC Offset

< 20 mV External Amplitude Modulation: Depth: 0 - 10 %, Frequency: DC - 2 KHz

Isolation Voltage

300 Vrms output to chassis

AC Mode Current

Model

Model

3001 i/iX

5001 i/iX

9003 i/iX 3ø

Steady State AC Current

300 V range

11.1

18.5

11.1 /ø

150 V range

22.2

37.0

22.2 /ø

Note: Constant power mode provides increased current at reduced voltage (See chart below)

Model

Model

10001 i/iX

15001 i/iX

15003 i/iX 3ø

Steady State AC Current

300 V range

37.0

55.5

18.5 /ø

150 V range

74.0

111.0

37.0 /ø

Note: Constant power mode provides increased current at reduced voltage (See chart below)

Model

Model

3001 i/iX

5001 i/iX

9003 i/iX 3ø

Peak Repetitive AC Current

High range

96.0

96.0

96.0 /ø

Low range

110.0

110.0

110.0 /ø

Model

Model

10001 i/iX

15001 i/iX

15003 i/iX 3ø

Peak Repetitive AC Current

High range

192.0

288.0

96.0 /ø

Low range

220.0

330.0

110.0 /ø

Programming Accuracy

Voltage (rms): ± 0.2 of range, 16 to 1000 Hz, Frequency: ± 0.01 % of programmed value, Current Limit: ± 0.5 % of programmed value, Phase: < 1.5° with balanced load at 50/60 Hz

Programming Resolution

Voltage (rms): 100 mV, Frequency: 0.01 Hz from 16 - 81.91 Hz, 0.1 Hz from 82.0 - 819.1 Hz, 1 Hz from 820-1000 Hz, Current Limit: 0.1 A, Phase, 0.1°

Output Relay

Push-button controlled or bus controlled output relay

Output Impedance (iX Only)

Programmable Z on 3001iX, 5001iX, 9003iX and 15003iX (3ø mode only) for 50 Hz fundamental

Resistive

Range: 17 - 1000 mOhm,resolution: 4 mOhm accuracy, 2 % FS

Inductive

Range: 230 - 1000 μH, resolution: 4 μH, accuracy: 2 % FS

Measurements - Standard (AC Measurements)

Parameter

Frequency

RMS Voltage

RMS Current

Peak Current

Range

16-500 Hz

0-300 V

0-40 A

0-120 A

Accuracy* (±)
0.01% +
0.01 Hz

< 100 Hz

100 - 500 Hz

0.5 V + 0.02%

0.1 V + 0.02%

0.5 A + 0.02%

0.1 A + 0.02%

0.5 A + 0.02%

0.1 A + 0.02%

Resolution*

0.01 Hz

10 mV

1 mA

1 mA

Parameter

Crest Factor

Real Power

Apparent Pwr

Pwr Factor

Range

0.00-6.00

0-6 kW

0-6 kVA

0.00-1.00

Accuracy* (±)
0.01% +
0.01 Hz

0.05

0.05

10 W + 0.1%

20 W + 0.1%

10 VA + 0.1%

20 VA + 0.1%

0.01

0.02

Resolution*

0.01

1 W

1 VA

0.01

Parameter

DC Voltage

DC Current

Power

Voltage Ranges

0-300 V

0-40 A

0-6 kW

Accuracy* (±)
0.01% +
0.01 Hz

150 mV

150 mV

70 mA

70 mA

15 W

15 W

Resolution*

10 mV

1 mA

1 W

* Measurement system bandwidth = DC to 48 kHz. Accuracy specifications are valid above 100 counts. Current and Power Accuracy specifications are times two for 10001i/iX /30003i/iX and times three for 15001i/iX and 9003i/iX and 15003i/iX with MODE-iX option when in single phase mode. For 10001i/iX, 15001i/iX and 30003i/ iX, resolution decreases by factor of 10, ranges for current and power increases by factor of three. PF accuracy applies for PF > 0.5 and VA > 50% of range.

Measurements - Harmonics

Parameter

Frequency Fundamental Harmonics

Phase

Voltage

Current

Range

16.00-500.0 Hz / 32.00 Hz - 48.00 kHz

0.0 - 360.0°

Fundamental Harmonics 2 - 50

Fundamental Harmonics 2 - 50

Accuracy* (±)

0.01% + 0.01 Hz

2° typ.

250 mV 0.1% + 250 mV+0.1% /1 kHz

50 mA/0.1% + 50 mA +0.1% /1 kHz

Resolution

0.01 Hz

0.5°

10 mV / 10 mV

10 mA / 10 mA

* Accuracy specifications are valid above 100 counts. Accuracy specifications are times three for three phase mode. Harmonics frequency range in three phase mode is 32 Hz - 16 kHz. Resolution decreases by factor of 10 for 9003iX and 15003iX with Mode-iX option in 1 phase mode and for 10001iX, 15001iX and 30003i/iX.

DC Mode Output

Power (Max at full scale of DC Voltage Range)

3001i/iX: 2100 W, 5001i/iX: 3500 W, 9003i/iX: 2100 W/ø 3ø, 6300 W/ø 1ø, 10001i/iX: 7000 W, 15001i/iX: 10500 W, 15003i/iX: 3500 W/ø 3ø, 10500 W/ø 1ø

Voltage Ranges

Range: Low: 200 Vdc, High: 400 Vdc

Line Regulation

< 0.1% FS or 10% line change

Output Noise

< 250 mV rms typ., < 500 mV rms max., (20 kHz to 1 MHz)

Max DC Current (Maximum current at 65% of V Range)

Model

3001 i/iX

5001 i/iX

9003 i/iX

9003 i/iX 3ø

400V range

7.8

13

23.4

7.8

200V range

15.6

26

46.8

15.6

Model

10001 i/iX

15001 i/iX

15003 i/iX 3ø

400V range

26

39

13

200V range

52

78

26

Current Limit

Programmable from 0 A to maximum current for selected range

AC+DC Mode Output

Output Power (iX only)

Full AC Power if DC component is less than 20% of full scale voltage, Full DC power if DC component is above 20%

Storage

Non Volatile Mem. storage

16 instrument setups, 200 user defined waveforms

Waveforms

Waveform Types

i Series II: Sine, iX Series II: Sine, Square, Clipped sine, User defined

User defined waveform storage

Four groups of 50 user defined arbitrary waveforms of 1024 points for a total of 200 (One group can be active at a time)

System Interface

Inputs

Remote shutdown, External Sync, Clock/Lock (option)

Outputs

Function Strobe, Clock/Lock (option)

Protection

Over Load

Constant Current or Constant Voltage mode

Over Temperature

Automatic shutdown

Remote Control

IEEE-488 Interface

IEEE-488 (GPIB) talker listener. Subset: AH1, C0, DC1, DT1, L3, PP0, RL2, SH1, SR1, T6, IEEE-488.2 SCPI Syntax

RS232C Interface

9 pin D-shell connector, Handshake: CTS, RTS, Data bits: 7,8, Stop bits: 1, 2, Baud rate: 9600, 19200, 38400, 57600, 115200, IEEE-488.2 SCPI Syntax (Supplied with RS232C cable)

DC Mode Output

Voltage

3001 and 9003: 208-240 ± 10% Vac, (L-N, 1ø), All other models: Standard: 208-240 ± 10% Vac, (L-L, 3ø), Option -400: 400-480 ± 10% Vac, (L-L, 3ø) (Input range must be specified when ordering)

Max DC Current (Maximum current at 65% of V Range)

Model

3001i/iX

5001i/iX

9003i/iX

187-264V

25 A

23 A

75 A

360-528V

N/A

12 A

N/A

Model

10001 i/iX

15001 i/iX

15003 i/iX 3ø

187-264V

46 A

69 A

69 A

360-528V

24 A

36 A

36 A

Inrush Current per chassis

< 100 Apk for 100 μs at 208-240 V, < 50 Apk for 100 μs at 400-480 V

Line Frequency

50-60 Hz ± 10 %

Efficiency

75% typical

Power Factor

0.6 typical

AC Service

Regulatory

IEC61010, EN50081-2, EN50082-2, CE EMC and Safety Mark requirements

RFI Suppression

CISPR 11, Group1 , Class A

Rear Panel Connectors

AC Input & Output terminal block with cover, IEEE-488 (GPIB) connector (rear panel), 9 pin D-Shell RS232C connector*, Remote voltage sense terminal block, System Interface Connector, *RS232 DB9 to DB9 cable supplied

Physical Dimensions

Dimensions

Height: 7” (178 mm), Width: 19” (483 mm), Depth: 24” (610 mm)
(depth includes rear panel connectors)

Weight

per 5001i/iX Chassis: Net: 61 lbs / 28 Kg, Shipping: 115 lbs / 52 Kg

Vibration and Shock

Designed to meet NSTA project 1A transportation levels

Air Intake/Exhaust

Forced air cooling, side air intake, rear exhaust.

Operating Humidity

0 to 95 % RAH, non condensing.

Temperature

Operating: 0 to 40° C, Storage: -20 to +85° C
