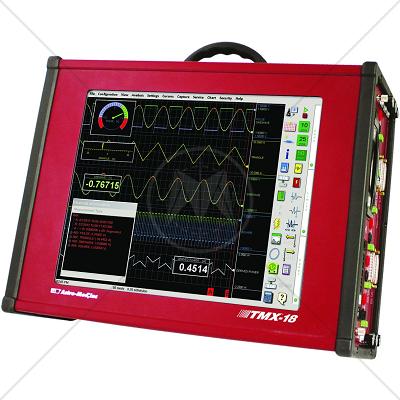

18-CHANNEL CHASSIS WITH 3 UNIV-6 UNIVERSAL ISOLATED VOLTAGE MODULES

Maximum Analog Modules

3

Maximum Analog Waveforms

18

Event Inputs (TTL)

16

Derived Channels

+, -, x, ÷, Exponential, Sin, Cos, Tan, Asin, Acos, Atan,
Exp √, Absolute Value

DATA ACQUISITION RECORDING

Operational Modes

Scope, Review, Real-time (strip-chart)

Recording Method

Internal removable 1 Tbyte SATA disk drive

Time Stamp

Time and date automatically saved with data

Trigger Point

Amount of pre and post trigger is user adjustable

Filtering

Low pass, high pass, band pass, band stop, RMS,
integration & differentiation

COLOR DISPLAY

Type

Active matrix color LCD (TFT)

Viewing Area

17" / 43.2 cm (diagonal)

Resolution

1280 x 1024

Touch

Full screen, resistive

COMPLIANCE / ENVIRONMENTAL

Operating Temp

32 to 104 °F (0 to 40 °C)

Operating Humidity

10 % to 90 % non condensing

Shock

MIL-STD-810F Method 516.5, Procedure I

Vibration

MIL-STD-810F Method 514.5, Procedure I

PHYSICAL

Enclosure

Aluminum, with armored end caps

Dimensions

14.5” ( 36.8 cm) H x 19” ( 48.3 cm) W x 7.5” (19.1 cm) D
(without handle)

Weight (including 3 modules)

37 lbs (15.28 kg)

INTERFACE

Ethernet

1000BaseT

VGA

For displaying data on an external monitor

USB 2.0 (8 ports per unit)

For external peripherals and file export

Expansion Port

For connection of optional TMX-E

SYSTEM POWER

Input Voltage Range

102 to 264 VAC or 24 VDC at 11A

Frequency Range

47 Hz to 63 Hz
