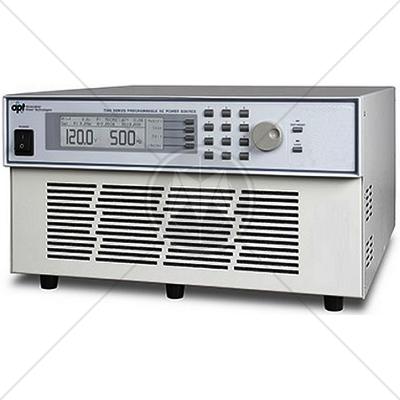

Associated Power 7040 Automated AC Power Source 1Ø 4kVA

Description

The 7000 Series automated AC power sources are ideal for advanced applications at competitive prices. Switch-mode technology and a direct coupled output make these sources light weight and efficient for use on the bench-top or in a rack mount. The graphic LCD display provides real-time data on the front panel and the easy-to-use local interface allows operators to get tests up and running quickly. Use the rotary knob to adjust voltage or frequency during testing, adjust the starting or ending phase angle of the output waveform, and simulate the effect of voltage surges and drops on your DUT for transient testing.

The 7000 Series can be controlled with a PC from a variety of different interfaces – All at no extra cost! Choose from USB, Ethernet, RS-232 and GPIB.

Features

  • 50 built-in memory locations with 9 test steps can be linked to quickly store and recall test parameters for multiple product testing applications
  • Surge/Drop features simulate voltage variations, brownouts and transient voltage conditions
  • Adjust the starting and ending angle of the output waveform
  • LCD display monitors voltage, current, peak current, power and power factor
  • Adjustable delay time, ramp up time, and test duration
  • Independent, adjustable high and low limits for voltage, current, frequency, power, and power factor
  • Power Up feature configures the output relay for quick and efficient testing
  • Constant current output with over current fold back feature
  • Front panel lockout and password protection
  • Standard USB/RS-232 interface with no charge optional Ethernet and GPIB interfaces available
  • Rotary knob to adjust voltage and frequency on the fly
  • CE Marked

Specifications

Power Rating

1Ø 4kVA

Max Current

36.8 A @ <110 V, 18.4 A @ <220 V

Dimensions (W x H x D)

16.9 x 8.7 x 19.7 in (430 x 222 x 500 mm)

Weight

143.3 lbs (65 kg)

Interface

USB / RS-232 Standard

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
