Amplifier Research 75A400 RF Amplifier 10 kHz – 400 MHz 75W

• Description
• Features
• Specifications

Description

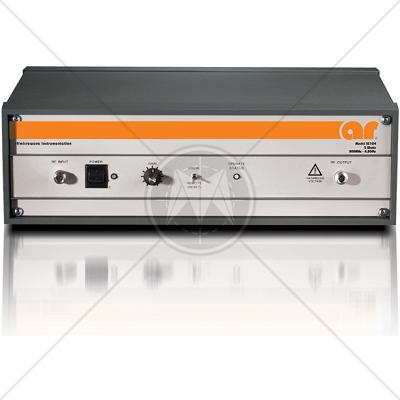

Amplifier Research 75A400 amplifier is a portable, self-contained, air-cooled, broadband, solid state amplifier unit designed for laboratory applications where instantaneous bandwidth, high gain and moderate power output are required. Utilization of push-pull MOSFET circuitry lowers distortion, improves stability and allows operation into any load impedance without damage. When used with an RF sweep generator, the 75A400 will provide a minimum of 75 watts of swept RF output power.

The Model 75A400 includes a front panel RF Gain Control, which permits the operator to conveniently set the amplifier's desired output level. Housed in a stylish contemporary enclosure, the unit provides instantaneous power for typical applications such as RF susceptibility testing, antenna and component testing, Watt-meter calibration and as a driver for higher power amplifiers.

The 75A400 is powered by a high efficiency switching supply, with auto ranging AC input circuitry which will automatically accept voltages from 90 to 135 VAC or from 180 to 270 VAC, in the 47 to 63 Hz frequency range. The RF Amplifier stages are protected from over temperature by removing the DC voltage to them if an over temperature condition occurs due to a cooling blockage or fan failure.

The digital display on the front panel indicates the operation status and any pending fault conditions when an over temperature or power supply fault has occurred. The unit can be returned to normal operation when the condition has been cleared; as with the other functions, this can be readily accomplished through a front panel switch.

The unit also includes digital control for both local and remote control of the amplifier. The 8-bit RISC microprocessor controller board provides IEEE-488 (GPIB) and asynchronous full duplex RS-232 communication control of all amplifier functions.

Features

• Solid state
• Broadband
• Air cooled
• Gain Control
• Push-pull MOSFET circuitry
• Mismatch tolerant
• Modulation capability
• RF connector – Type N
• Interface – IEEE-488, RS-232
