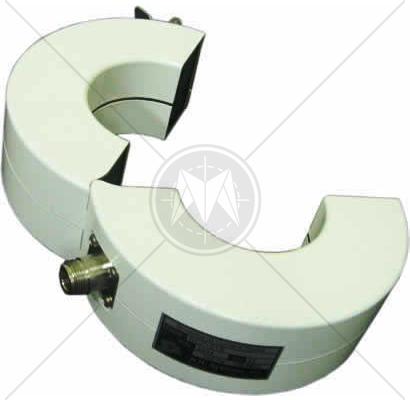

A.H. Systems BCP-519 Broadband Current Probe 100 Hz 500 MHz

Description

Conducted currents can be measured without making direct contact with the source conductor or metallic surface by means of clamp-on current probes. The BCP-519 Current Probe is designed to permit field intensity meters, spectrum analyzers, and other 50 ohm impedance instruments to measure quantitative magnitudes of current. Measurements can be made on single and multi-conductor cables, ground and bonding straps, shielded conduits and on coaxial cables.
The BCP-519 has a usable frequency range of 100 Hz to 100 MHz with a transfer impedance of 0.005 ohms from 10 kHz to 100 MHz Primary power currents of 200 amperes DC to 60 Hz, 70 amperes 400 Hz and 60 amperes CW and 5,000 amperes pulse will not alter the transfer impedance.

Features

  • Measures currents on 50 Hz, 60 Hz and 400 Hz power lines
  • Ideally suited to measuring currents on large cables.
  • Individually Calibrated (Transfer Impedance calibration included)
  • High Current Capability
  • Split Type Clamp-on Design

Specifications

Frequency Range

100 Hz - 100 MHz

Transfer Impedance (dBW)

-40 to 17

Max Primary Current (DC - 400 Hz)

70 Amps

Max RF Current

60 Amps

Max Pulse Current

5000 Amps

Connector

N-Type, Female

 A.H. Systems BCP-519 Physical Dimensions

Aperture

2.6" (67 mm)

Diameter

5.5" (142 mm)

Weight

6.0 lb.'s (2.72 kg)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
