Products by Haefely Technology EMC


Haefely EMC Technology is part of the HAEFELY TEST AG group based in Basel - Switzerland. As part of the well established HAEFELY TEST AG group; Haefely takes pride in being one of the leading manufacturers of conducted immunity test systems that has brought EMC testing where it is today. It is their responsibility as one of the most trusted EMC test equipment manufacturers in the world, to maintain the same high quality and exceptional reputation that their ancestors at HAEFELY have created and proudly kept for over 100 years.
Filter by Category:
Haefely PIM 155 100 kHz & 1 MHz Oscillating Magnetic Field Module
Haefely PIM 155 100 kHz & 1 MHz Oscillating Magnetic Field Module
IEC 61000-4-10 describe an oscillating magnetic field generator. The oscillating magnetic field is used to test the immunity of electronic equipment to be installed in high voltage sub-stations. Safety is paramount when AC and impulse voltages are... View Details >>

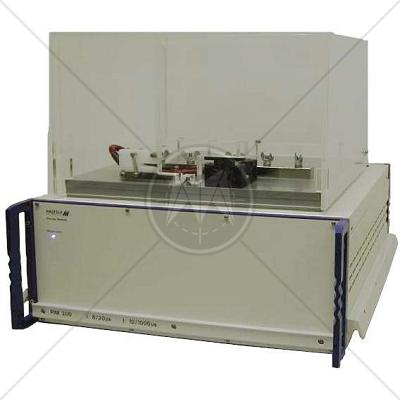

Haefely PIM 200 8/20µs & 10/1000µs Current Module
Haefely PIM 200 8/20µs & 10/1000µs Current Module
The PIM200 is used for component testing with impulse currents. For testing overvoltage protection elements such as varistors, gas arrestors and avalanche breakdown diodes with clamping voltages up to 3kV. Both impulses shapes 8/20µs and 10/... View Details >>

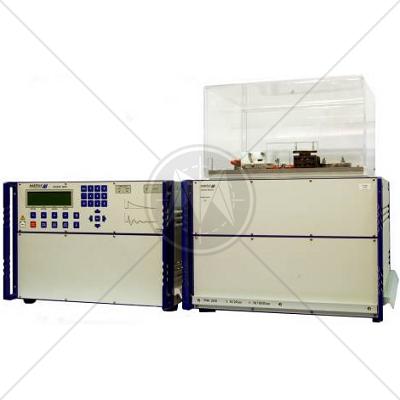

Haefely PIM 210 8/20µs & 10/1000µs Current Module
Haefely PIM 210 8/20µs & 10/1000µs Current Module
The PIM 210 is used for component testing with current impulses. For testing overvoltage protection elements such as varistors and avalanche breakdown diodes with clamping voltages up to 3kV. Both impulse shapes 8/20µs and 10/1000µs a... View Details >>
Haefely PS 1500 15kV Impulse Voltage Generator
Haefely PS 1500 15kV Impulse Voltage Generator
The PS 1500 generator is fully compliant to the IEC, EN and UL requirements for safety testing of ITE, Audio, Video and similar equipment and components used in this kind of equipment. Clause 10 of the IEC/EN 60065 standard specifies tests on equ... View Details >>
Haefely PSURGE 30.2 Modular 30kV / 30kA Surge Test System
Haefely PSURGE 30.2 Modular 30kV / 30kA Surge Test System
This test system is used to perform high energy surge tests. Energy surges are generated by atmospheric lightning in power circuits. A surge is characterized by high energy and relative fast front times. Pulse durations are widely variable as are the... View Details >>
Haefely PSURGE 8000 Surge Platform Test System
Haefely PSURGE 8000 Surge Platform Test System
This system meets ALL your current and future Surge Testing requirements! A modular expandable system that grows with your application needs. The modular concept is built around a PC based host controller (the PSURGE 8000 Controller) with physica... View Details >>

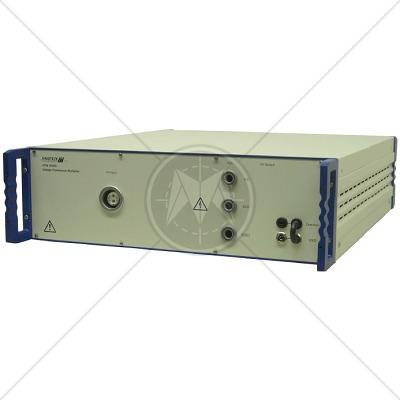

Haefely VTM 15000 Impulse Transformer for Insulation Testing
Haefely VTM 15000 Impulse Transformer for Insulation Testing
The VTM 15000 is used for insulation testing with 1.2/50us voltage impulses. The VTM 15000 runs together with a combination wave generator such as PIM 100 or PSURGE 4010. The output voltage of the generator is doubled; the voltage wave shape remai... View Details >>
