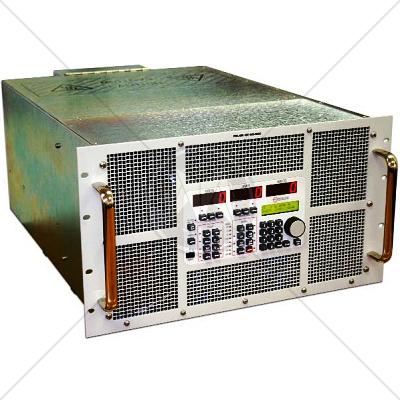

Transistor Devices/Dynaload RBL 488 400V, 600A, 6kW Programmable Load

Description

The RBL 488 Dynaload Series features 400, 800, 2000 and 4000 watt models with wide range IEEE 488 computer programming. Individual models are designed for low voltage high current application up to 1000 amperes at fractions of a volt whereas other models are designed for midrange applications and high voltage applications up to 1000 volts. Equivalent RBL Dynaloads are available with RS 232 and Analog programming for laboratory as well as production applications. All models include easy applying master slave parallel capabilities and all higher power models incorporate variable speed forced air cooling to assure a quiet environment.

Features include constant resistance, constant voltage, constant current, constant power and pulse load transient testing with selectable 4000 bit resolution readback scales of voltage, current and power.

Features

  • High Speed Adjustable Slew Rate
  • Front Panel or Remote Control
  • 19 inch Rack Mount - 5U high
  • Pulse Load Shaping
  • Full Range Switching
  • Quiet Variable Speed Fans
  • Programmable Undervoltage

Specifications

OPERATING RANGES (FULL SCALES)

Voltage

20 Volts, 200 Volts, 400 Volts

Current

20 Amps, 200 Amps, 600 Amps

Power

6000 Watts

Short Circuit

0.010 Ohms max.

CONSTANT RESISTANCE RANGES

High Ohms Mode

Range

20A

200A

6000A

20V

0-.5 A/V

0-5 A/V

0-15 A/V

200V

0-.05 A/V

0-.05 A/V

0-1.5 A/V

400V

0-.025 A/V

0-.25 A/V

0-.75 A/V

Low Ohms Mode

Range

20A

200A

6000A

20V

0-5 A/V

0-50 A/V

0-150 A/V

200V

0-.5 A/V

0-2.5 A/V

0-15 A/V

400V

0-.25 A/V

0-2.5 A/V

0-7.5 A/V

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
