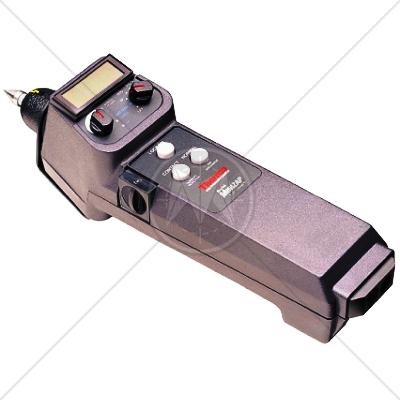

MINIZAP MODE MZ-15/EC

Voltage Range

±0.5 to >8 kV, Contact Mode; ±0.5 to 15 kV, Air Discharge

Air Discharge

TRUE-ESD® (<0.3 ns nominal risetime up to 4 kV)

Contact Mode

FR/CI™ std

<0.3 ns risetime independent of charge voltage;

3.75A/kV ± 10% peak, e.g. 30 A @ 8 kV

RC Networks

150 pF/330 ohm std

Lock On

Std (with safety interlock)

Rep Rate

Single shot as well as 1/sec and 20/sec repetitive operation

HV Display

Digital LCD display measures actual HV at the tip with 10V resolution, ~3% accuracy

Ground Connect Warning

LED indicates ground cable not connected to MiniZap

Power

Operates either from 120 VAC, 50/60 Hz or 4 NiCd batteries with LED

charge status indicator. (220/240 VAC, 50/60 Hz and European plugs optional)

Dimensions

10” x 2.5” x 3.2” (25.4cm x 8.9cm x 8.1cm)

Weight

29 oz (822 gm) nominal, plus case and accessories
