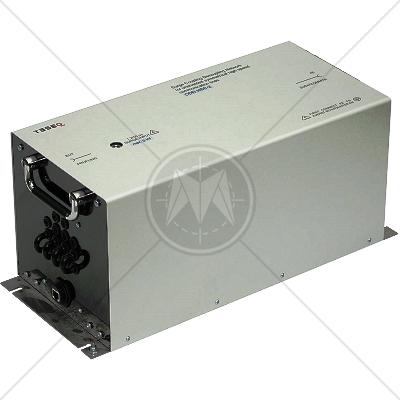

TESEQ CDN HSS-2 Coupling Decoupling Network

Description

The Coupling Decoupling Network CDN HSS-2 is designed for convenient surge testing with 1.2/50 μs pulses, as defined in IEC/EN 61000-4-5, on unshielded symmetrical high speed telecommunication lines e.g. Ethernet. Coupling modes to 1, 2 or 4 pairs are given and coupled with 40 Ω in series with a capacitive coupling element. The CDN HSS-2 allows testing on ISDN and Ethernet with 10/100BaseT and 1000BaseT as well. Power over Ethernet (PoE) is applicable.

With a surge test voltage of 2 kV is the maximal residual voltage at the AE port only 65 V due to the excellent decoupling network. Additional decoupling elements are not required to protect the auxiliary equipment (AE). The high decoupling provides an AE independent pulse shape for the EUT testing. High measurement reproducibility is given by using the CDN HSS-2. The decoupling network is in accordance to IEC 61000-4-5/Ed.3/77B/674A/CD:2012-05.

It can be used with Teseq’s NSG series or any industry standard surge generator with the appropriate connector adapter.

Features

  • CDN for 1.2/50 μs pulse as per IEC 61000-4-5/Ed.3/77B/674A/CD:2012-05
  • CDN for up to 8 wire unshielded twisted pair (UTP)
  • Coupling to 1, 2 or 4 pairs
  • ISDN, 10/100BaseT, 1000BaseT
  • PoE applicable

Specifications

Circuit diagram

according to Fig. 11 of IEC 61000-4-5/

Ed.3/77B/674A/CD:2012-05

Max. surge test voltage

2 kV* (1.2/50 μs pulse as per IEC/EN 61000-4-5)

Max. surge test current

50 A (8/20 μs pulse as per IEC/EN 61000-4-5)

Coupling mode

Common mode to 1, 2 or 4 pairs with respect to

CDN chassis

Coupling elements

40 Ω in series with capacitive coupling elements

Max. residual test voltage at AE port

65 V (at 2 kV surge test voltage)

Surge input connector

HV connector female (Fischer D103A023)

Applications

ISDN, 10/100BaseT, 1000BaseT etc., switchable per

jumper, PoE applicable

Cable type

8 wire unshielded twisted pair (UTP)

Insertion loss, typical

9 dB at 100 MHz

Other typical network limits

TIA-568-A Category 5-TSB95 Link

Max. operating speed

1000BaseT

Max. operating voltage

100 VDC between pairs

Max. operating current

1 A (rated for Power over Ethernet)

Connection (EUT port, AE port)

RJ45 female

*) +10 % tolerance allowed
