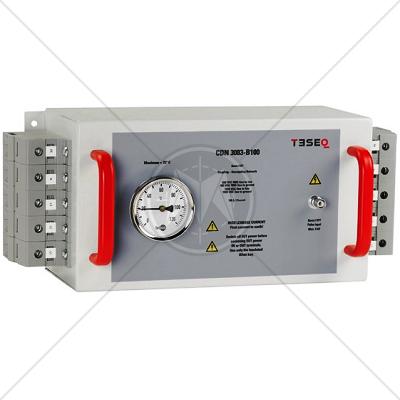

TESEQ CDN 3083 B100 Manual Coupling/Decoupling Network (Prev. CDN 163)

Description

High frequency pulse signals can result in cross-talk between conductors running in parallel even over short distances. This behavior is taken into account in the latest and currently valid edition of the EFT/burst standard IEC/EN 61000-4-4 (2004). Only the single coupling mode of “all conductors together against reference ground” is called for in interference immunity measurements with fast transients.

This simplifies the construction and utilization of coupling networks considerably, complicated coupling switches can be omitted.

The CDN 3083 B100 is a 3-phase EFT/burst pulse coupling network for large EUT currents. Although designed for continuous duty at up to 100 A per phase, the unit can be subjected to considerably higher currents for short durations. For 1-phase or DC applications it’s possible to connect the input channels parallel, thus to increase the EUT current. As a result, high inrush currents or pulse-shaped peak currents can be handled with ease. The current limitation is largely down to a matter of thermal loading. A built-in thermometer enables the heating effect to be monitored. The type of construction, using a metal housing for use directly on the ground reference plane, ensures excellent HF earthing. The power and EUT connections take the form of generously dimensioned screw terminals.

Features

  • 3-phase coupling network
  • For AC and DC up to 100 A per
  • channel
  • Short-term overstress capability
  • Easy handling
  • Secure and durable construction
  • Compatible with all types and
  • brands of EFT/burst generators

Specifications

EUT (supply) voltage

690 VAC, line-to-line and line-to-ground

1000 VDC, line-to-line and line-to-ground

EUT current (AC or DC)

≥100 A continuous

150 A for approx. 30 min

EFT/burst pulse peak voltage

Up to 8000 V

Leakage current to ground

7.1 mA max. (short duration – during power up)

Terminals: Screw terminals, 50 mm² rated for 150 A

Temperature monitoring: Bimetal-thermometer -0 to +120°C

Grounding

4 mm combined banana and screw terminal (safety grounding). Via housing bottom plate and brackets

(FH ground to test setup ground plate).

Dimensions L x W x H

380 x 150 x150 mm (15 x 5.9 x 5.9“)

Dimensions L x W x H

x 4.2 kg (9.3 lbs) approx.

EFT/burst coupling network options

INA 3083 B100: safety banana plug set 6 to 4 mm (10 pcs)

INA 164: Measuring adapter incl. 5 pcs safety banana plugs

CAS 3025: Burst calibration set

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
