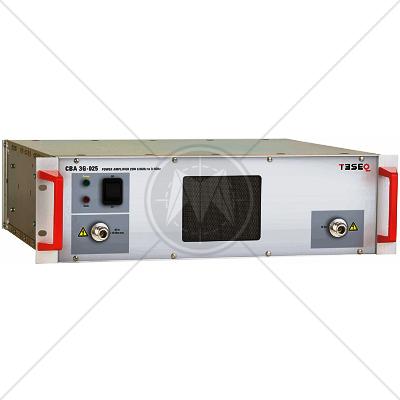

TESEQ CBA 3G-025 Class A Broadband Amplifier 800 MHz – 3.1 GHz 25 W

Description

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz. Although antennas are usually well matched at these high frequencies, the presence of the EUT in the path of the antenna causes high levels of reflected power which only full Class A amplifiers can tolerate.

Whilst antenna gain is relatively constant, increasing cable losses at the higher frequencies demand increasing power with increasing frequency. Teseq amplifiers are therefore designed to maintain their high linear output power right up to and beyond the defined frequency range.

The GaAs Class A design ensures a high reliability, low distortion linear performance across the frequency range. This design also ensures that the amplifier will continue to operate at full power even when presented with an open or short circuit at its output.

Features

  • Class A linear and low distortion design
  • High reliability gallium arsenide technology
  • Mismatch tolerant and unconditionally stable
  • Wide instantaneous bandwidth
  • Three year parts and labor warranty

Specifications

Parameter

Value

Frequency range (instantaneous)

800 to 3100 MHz

Rated output power

25 W minimum (800 MHz to 3 GHz)
30 W typical (800 MHz to 3 GHz)
22 W minimum (3.0 GHz to 3.1 GHz)
25 W typical (3.0 GHz to 3.1 GHz)

Output power at 1 dB gain compression

23 W minimum (800 MHz to 3 GHz)
25 W typical (800 MHz to 3 GHz)
20 W minimum (3.0 GHz to 3.1 GHz)
22 W typical (3.0 GHz to 3.1 GHz)

Gain

46 dB

Harmonics at P1 dB

-20 dBc

Power Supply Voltage

85-264 VAC

Power Supply Phases

1

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
