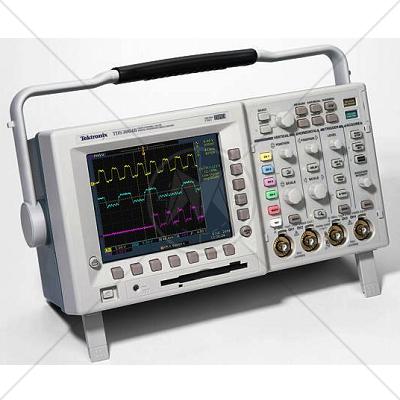

Tektronix TDS3024B 4 Channel 200 MHz Digital Oscilloscope 2.5 GSa/s

Description

The TDS3000B Series packs the power of a DPO, digital real-time (DRT) sampling technology, WaveAlert waveform anomaly detection, Open Choice documentation and analysis solutions and five application specific modules into a lightweight, battery-capable design.

A DPO Provides a Greater Level of Insight into Complex Signals. The TDS3000B Series DPO delivers 3,600 wfms/s continuous waveform capture rate to capture glitches and infrequent events three times faster than comparable oscilloscopes. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but your oscilloscope needs to deliver these fast waveform capture rates on a continuous basis saving minutes, hours or even days by quickly revealing the nature of faults so advanced triggers can be applied to isolate them.

In addition, the TDS3000B DPOs real-time intensity grading highlights the details about the history of a signals activity, making it easier to understand the characteristics of the waveforms youve captured.

Features

  • 100 to 500 MHz Bandwidths
  • 5 GS/s Real-time Sample Rate, with sin(x)/x Interpolation
  • 3,600 wfms/s Continuous Waveform Capture Rate
  • 2 or 4 Channels
  • Full VGA Color LCD
  • 25 Automatic Measurements
  • FFT Standard
  • Multi-language User Interface
  • QuickMenu Graphical User Interface for Easy Operation
  • WaveAlert® Automatic Waveform Anomaly Detection
  • OpenChoice® Solutions Simplify Instrument Control, Documentation, and Analysis

Specifications



TDS3012B

TDS3014B

TDS3024B

TDS3032B

TDS3034B

TDS3044B

TDS3052B

TDS3054B

Bandwidth

100 MHz

100 MHz

200 MHz

300 MHz

300 MHz

400 MHz

500 MHz

500 MHz

Channels

2

4

4

2

4

4

2

4

Sample rate on each channel

1.25 GS/s

1.25 GS/s

2.5 GS/s

2.5 GS/s

2.5 GS/s

5 GS/s

5 GS/s

5 GS/s

Maximum record length

10 K points on all models

Vertical resolution

9 Bits on all models

Vertical sensitivity (/div)

1 mV – 10 V on all models

Vertical accuracy

±2% on all models

Max input voltage (1 MΩ)

150 VRMS CAT I on all models (300 V CAT II with standard 10X probe)

Position range

± 5 div on all models

BW limit

20 MHz

20 MHz

20, 150 MHz

20, 150 MHz

20, 150 MHz

20, 150 MHz

20, 150 MHz

20, 150 MHz

Input coupling

AC, DC, GND on all models

Input impedance selections

1 MΩ in parallel with 13 pF or 50 Ω on all models

Time base Range

4 ns – 10 s/div

4 ns – 10 s/div

2 ns – 10 s/div

2 ns – 10 s/div

2 ns – 10 s/div

1 ns – 10 s/div

1 ns – 10 s/div

1 ns – 10 s/div

Time base Accuracy

20 ppm on all models

Display (VGA)

Color active matrix LCD on all models

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
