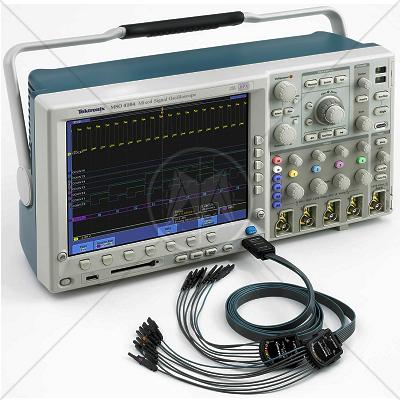

Tektronix MSO4054 4 Channel 500 MHz Oscilloscope 2.5 GSa/s

• Description
• Features
• Specifications

Description

The DPO4000 Series Digital Phosphor Oscilloscopes (DPOs) are the first oscilloscopes to offer usable deep memory on all channels, excellent performance, serial trigger and analysis options, and all in the most compact form factor in their class. The MSO4000 Series Mixed Signal Oscilloscopes (MSOs) provide all the features and benefits of the DPO4000, but add 16 integrated digital channels, enabling you to visualize and correlate analog and digital signals on a single instrument. This integration extends triggering functionality across all 20 channels providing pattern and state triggering ideal for debugging mixed analog and digital designs.

Features

• 1 GHz, 500 MHz, 350 MHz Bandwidth Models
• 2 and 4 Channel Models
• 16 Digital Channels (MSO4000)
• Sample Rates Up to 5 GS/s on All Channels
• 10 Megasample Record Length on All Channels
• 50,000 wfm/s Maximum Waveform Capture Rate
• Suite of Advanced Triggers
• Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis
• I2C, SPI, CAN, LIN, FlexRay and RS-232/422/485/UART Serial Triggering and Analysis Options
• 10.4 in. (264 mm) XGA Color Display
• Small Footprint and Lightweight - only 5.4 in. (137 mm) deep and 11 lbs. (5 kg)!
• USB and CompactFlash on Front Panel for Quick and Easy Storage
• Built-in Ethernet Port
• Plug ‘n’ Play Connectivity and Analysis Software Solutions
• USB 2.0 Device Port for Direct PC Control of Oscilloscope using USBTMC
• Suite of Advanced Triggers
• e*Scope® Remote Viewing and Control
• Interoperability with Tektronix Logic Analyzers
• TekVPI™ Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units
• HDTV and Custom Video Trigger Option

Tektronix MSO4054 Applications

• Embedded Design and Debug
• Mixed Signal Design and Debug
• Investigation of Transient Phenomena
• Power Measurements
• Video Design and Debug
• Automotive Electronics Design and Debug
