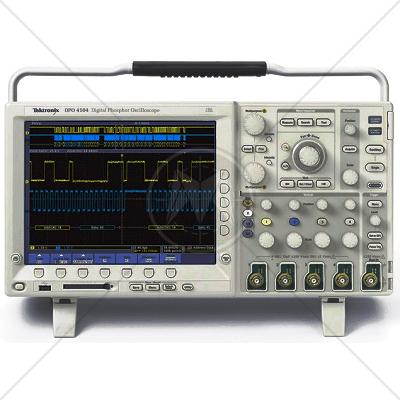

Tektronix DPO4104 4 Channel 1 GHz Digital Oscilloscope 2.5 GSa/s

• Description
• Features
• Specifications

Description

The DPO4000 oscilloscope family ranges from 350 MHz to 1 GHz and is the first to offer the groundbreaking Wave Inspector™, an unprecedented set of easy-to-use tools for discovery and efficient viewing, navigating, and analyzing waveform data. With Wave Inspector™, serial triggering, protocol decode, USB plug-and-play PC connectivity, a 10.4" XGA display, and smallest footprint in its class, the new portable DPO4000 simplifies debug and sets new standards for productivity, performance, value, and ease-of-use that will transform the market. The DPO4000 will meet the pressing debug needs of embedded systems design engineers.

Features

• 350 MHz to 1 GHz Bandwidth Models
• 2- or 4-Channel
• Up To 5 GS/s Sample Rate
• 10 Megasample Record Length on All Channels
• Wave Inspector Controls Provide Unprecedented Efficiency in Waveform Analysis
• Advanced Triggers Including Glitch, Runt, Logic
• I2C, SPI, CAN Serial Triggering and Analysis
• 10.4 in. (264 mm) XGA Color Display
• Small Footprint and Lightweight - Only 5.4 in. (137 mm) Deep and 11 lbs. (5 kg)
• USB and CompactFlash on Front Panel for Quick and Easy Storage
• Built-In Ethernet Port
• Plug 'n' Play Connectivity and Analysis Software Solutions
• e*Scope™ Web-based Remote Control
• USB 2.0 Device Port for Direct PC Control of Oscilloscope Using USBTMC
• Interoperability with Tektronix Logic Analyzers
• TekVPI'99 Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units

Tektronix DPO4104 Applications

• Embedded Design and Debug
• Investigation of Transient Phenomena
• Power Measurements
• Video Design and Debug
• Spectral Analysis
• Automotive Electronics Design and Debug
• Manufacturing Test and Quality Control
• Electro-mechanical Design and Analysis
• Bio-medical Product Development
• Industrial Control
