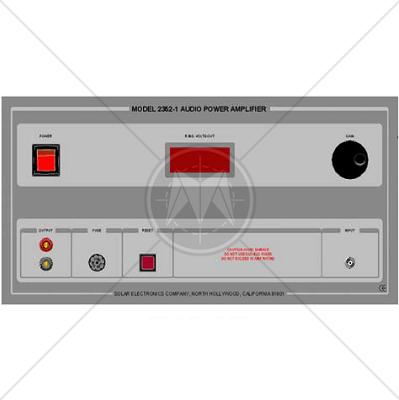

Solar 2352-1 Audio Power Amplifier 200 Watt

Description

For Conducted Audio Frequency Susceptibility Testing.

The Solar Model 2352-1 Audio Power Amplifier has a wide band frequency response and is capable of providing up to 200 watts at 1000 Hz into 2.0 ohms. Requires approximately 0.5 volts signal input for maximum power output at 1000 Hz. Designed for laboratory use with conventional 3/4" binding posts. A panel mounted fuse and an overload trip indicator protect the instrument from excessive out current or overvoltage conditions encountered in some applications.

Features

  • Digital volt meter; monitors the output voltage level
  • Wide frequency range; 30 Hz to 150 kHz (200 watts into 2.0 Ω [non-inductive])
  • Low Output Impedance for greater transfer of audio power
  • Protective circuits prevent damage to output stage caused by power frequency feedback in typical a.c. test setups
  • Up to 200 watts output into 2.0 ohm resistive load

Solar 2352-1 Application

The Solar Model 2352-1 200 watt Solid State Audio Power Amplifier was specifically designed for use with the Type 6220-1A Audio Isolation Transformer in making audio frequency susceptibility tests as required by Mil-Std-461E/F CS101. It also can be used for other EMI specifications.

Specifications

Frequency Range

20 Hz to 150 KHz

Frequency Stability

250 ppm/C

Input Voltage

0.5 volt for maximum power at 1000 Hz

Input Impedance

600 Ω (For 50 Ω, place a 550 Ω resistor in series with the input)

Output Power

200 watt into 2.0 Ω non-inductive

Output Impedance

2.0 Ω

Output Voltage

>20 volts RMS into 2.0 Ω non-inductive

Power Source

115/230 V 60/50 Hz

Power Line Fuses 115 V

12 amperes (2)

Power Line Fuses 230 V

5 amperes (2)

Net Weight

39 Lbs (17.7. Kg)

Shipping Weight

45 Lbs (20.4. Kg)

Height

9.12 Inches (22.2 cm)

Width

17.12 Inches (43.5 cm)

Depth

13.50 Inches (34.3 cm)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
