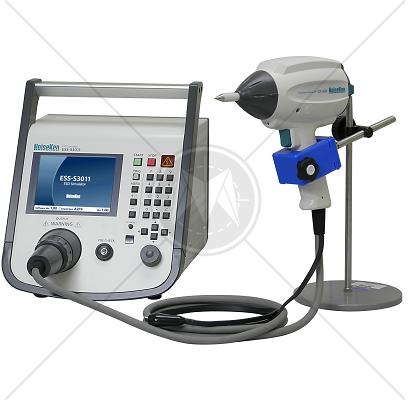

NoiseKen ESS-S3011 GT-30R Smart Model ESD Simulator 30kV

Description

EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is charged to the electronic equipment.

This can be available for evaluating malfunctions or functions declines of electronic equipment which are driven by AC/DC against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV and performable IEC61000-4-2 & ISO106050 Standards compliant tests.

Features

  • EN/IEC 61000-4-2 Ed2 Compliant
  • ISO 10605 Ed2 Compliant    (Note: Optional gun head and CR units are required.)
  • "3 pre-checking functions” taking the confirmable test into the account
  • "CR constant indicator” to ensure correct attachment is in place
  • “Ten-key & Rotary knob” to ease the setting
  • “Infra-red Remote Controller” to allow remote Generator setting
  • “Discharge Detecting Function” to realize the air-discharge confirmation
  • “Lightest Discharge Gun in the market” for better continuous operation
  • “White LED light” to show Discharging points
  • “Control Software” for Test Result Reporting and PC Control (Scheduled to be downloaded from NoiseKen web-site)

Specifications

ESD Simulator Main Unit Model: ESS-S3011

Items

ESS-S3011 specifications

Polarity

Positive or negative

Output voltage

0.2 to 30.0kV +/-5% (30.5kV Maximum)

0.2 to 10kV: 0.05V step,  10.0 to 30.0kV: 0.1kV step

Repetition cycle

0.05s to 99.9s +/-10% / Manual

0.05s to 10.0s: 0.05s step,  10.0 to 99.9s: 0.10s step

No. of time of discharge

1 to 60,000 times /continuous

 Discharge mode

Contac discharge / Air discharge

Radiation level mode

Normal mode / Extra mode

Trigger mode

Gun trigger / Main unit trigger / External trigger

Operation panel

Color LCD / Push-buttons (Partially lighting)

Gun holder

Standard attached (to hold the discharge gun Model GT-30R)

Radiation mode select switch

Extra / Normal switching function built-in

Discharge detection

Discharge detection function in air-discharge mode equipped

Pre-checking function

Following 3 steps function equipped (by under operation. Not the calibration but just checking)
SETP1 High voltage output checking
STEP2 Withstanding voltage checking
STEP3 Discharge relay operation checking

CR & Gun head checking

 CR constant and gun head recognizable (with an indicator to prevent the wrong combination)

IEC standard test mode

Contact discharge mode: 2.0, 4.0, 6.0, 8.0 kV step

Air discharge mode: 2.0, 4.0, 8.0, 15.0 kV step

Manual test mode

Contact/Air discharge mode: 0.20kV to 30.0kV

Sweep function available

Up to 50 units (test settings) storable

Sequence test mode

Seamless run of the selected test sequence

No. of steps per one sequence: up to 22 steps

No. of test sequences: up to 20

Warning lamp

Lights up while the HV circuitry is on.

Blinks while discharges are in progress.

Charging capacitor and resistance

150pF +/-10%, 330 ohm+/-10%  (built into Discharge Gun GT-30R)

Main unit charging resistance

10M ohm (53M ohm for combination with Discharge Gun GT-30R)

AUX connector

D-SUB 15 pin, female connector

Connection of Warning Lamp (optional)

Connection of Automatic ESD Eliminator (optional)

External interlock input

External trigger input

Optical communication connector

Optic connector for PC communication (serial interface)

Power supply/ Power consumption

100V to 240V AC, 50Hz/60Hz +/-10%  75VA

Included accessories

Remote controller 13-00004A, Gun holder, Instruction manual

Dimensions and weight

 (W) 270 X  (H)312 X  (D)295 mm

Approx. 7.0kg (gun holder excluded)  , Approx. 7.5kg (gun holder included)

Discharge Gun Model:  GT-30R

Items

GT-30R specifications

Output voltage

30.5kV Max

Polarity

Positive or Negative

Repetition cycle

0.05s and over   Note) Guaranteed value is 0.1s and over  (330pF and under)

Discharge mode

Contact or Air

Charging resistor

Built-in CR unit

Charge/Discharge capacitor & Discharge resistor

Built-in CR unit

High voltage connector

Composite connector of high voltage and signal line (male) NoiseKen custom

Operation switch

Discharge trigger

LED irradiator

White LED light built-in for irradiating EUT 。ハFocusing point is the tip)

Included accessories

CR unit (150pf-330 ohm) 06-00073A

Conical discharge tip 12-00007A

Round discharge tip 12-00008A

Instruction manual

Dimensions and weight

  (W) 83X  (H) 217 X  (D) 229 mm  (projection excluded)
Approx. 0.8kg (Cable and connector excluded)

Approx. 10.8kg (Cable included, connecter excluded)
