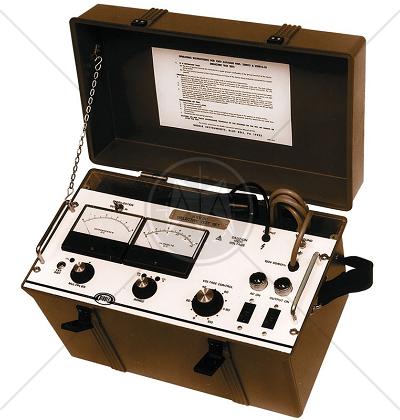

Megger 220015 DC Dielectric High Pot Tester 15 kV DC Test Voltage

Description

Dielectric test sets measure leakage current while applying a dc voltage at or above the insulation system's operating level. This measurement aids in determining the insulation system's ability to withstand overvoltages such as lightning strikes and switching surges.

Features

  • Compact and portable
  • Air insulated, uses no oil
  • ±2% accuracy
  • Leakage current measurement as low as 0.1 mA
  • Continuously variable test voltage with zero-start safety interlock
  • Fast charging of high-capacitance samples
  • Current guard circuit for highly accurate measurements
  • Strip chart recorder for hard copies (optionally available)

Megger 220015 Safety and Reliability

  • Input and output line circuit breaker
  • Output current overload relay
  • Zero-start interlock for high-voltage output
  • Switch control and indicating lights for high-voltage
  • ON/OFF on the 15-kV model
  • Full circuit breaker protection

Specifications

Megger 220015 15kV DC Dielectric Test Set

Output Voltage (maximum)

0 to 15 kVDC, negative with respect to ground

Output Current (maximum)

5 mA continuous

Kilovolt meter

4-in. (102-mm) taut band with two ranges, 0 to 7.5 and 0 to 15 kV

Current Meter

4-in. (102-mm) taut band with four ranges, 0 to 5/50/500 μA and 5 mA

Power Supply

120 VAC 50/60 Hz

Dimensions

9.4 x 13.5 x 10 in

Weight

20.5 lbs

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
