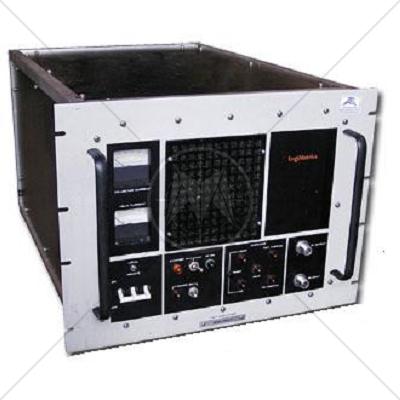

LogiMetrics A600/EH TWT Microwave Amplifier 2 GHz - 8 GHz 200W

Description

The A600 series of high power, linear broadband microwave amplifiers provide the user with proven reliable instrumentation for a wide variety of test and system applications. Each amplifier features regulation of the helix, filament and grid power supplies, thus providing stable operation and long life for the TWTs.

The TWT is fully protected against power supply malfunctions such as helix overcurrent, the power supply is designed to incorporate depressed collector TWTs as manufactured by several suppliers, allowing for wide flexibility in meeting your needs.

Optionally, the TWTAs can be supplied with complete input and output VSWR protection.

Features

  • Monitors -
    • Collector Current Voltage
    • Helix Current Meter
  • Status Indicators
    • Power On
    • RF Standby/On
    • Faults:
      • Helix Overcurrent
      • VSWR Overload
      • Power Supply Thermal Overload
      • TWT Thermal Overload
      • Air Flow
  • Controls
    • Power On/Off
    • RF Standby/On
    • Fault Reset
    • Local/Remote
  • Ease of Maintenance
  • Designed to meet the safety requirements of IEC-348 and UL1419
  • Broadband Frequency

LogiMetrics A600 Applications

  • EMC Susceptibility Testing
  • System Amplifiers
  • Communications
  • Threat Simulation
  • General Laboratory Instrumentation
  • Antenna Patterns Testing
  • High Power Component Testing

Specifications

Frequency Range (GHz)

2–8 GHz

Min. Pwr Out (Watts)

200 Watts

Min. Sat. Gain (dB)

36 dB

Max NF (dB)

35 dB

Spurious

-40 dBc (-50 dBc available)

In/Out VSWR

2.5:1 Maximum

In/Out Impedance

50 Ohms

RF Connectors

Frequency

Input

Output

1-18 GHz

Type N

Type N

Location

Front Panel

Front Panel

Prime Power

208 VAC, ±10%, Three Phase, 50/60 Hz, 2.5 kVA maximum

Cooling

Internal Air Forced

Air Intake

Rear Panel

Air Exhaust

Rear Panel

Operating Temperature

0-50 deg C (40 deg C @ 10,000 Feet)

Relative Humidity

95% (non condensing)

Operating Altitude

10,000 ft Max.

Non Operating

-20 to 70 deg C

Remote Operation

Standard operating mode control and status monitoring via IEEE-488 GPIB

Dimensions

14 x 17 x 25 in

Weight

175 (79.6 kg)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
