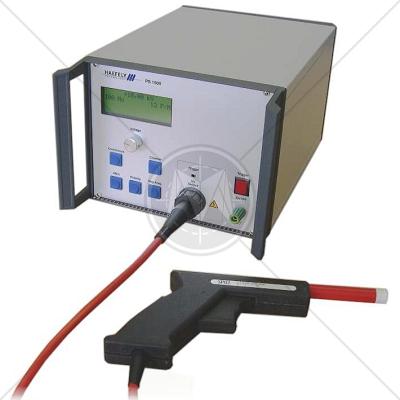

Haefely PS 1500 15kV Impulse Voltage Generator

• Description
• Features
• Specifications

Description

The PS 1500 generator is fully compliant to the IEC, EN and UL requirements for safety testing of ITE, Audio, Video and similar equipment and components used in this kind of equipment.

Clause 10 of the IEC/EN 60065 standard specifies tests on equipment insulation, clause 14 is written to test the insulation of components.

Section 7 of the IEC/EN 60950-1 standard specifies tests on IT-Equipment intended to be connected to outdoor antennas.
Clause 16 of UL 1414 specifies surge tests for lineby-pass and antenna coupling components.

The intention of these standards is to avoid the risk of injury or damage caused by voltage surges from thunderstorms.

Features

• Impulse counter
• Repetition up to 24 pulses / minute
• External trigger input
• Impulse voltage and flash monitor
• Handy test pistol included

Applications

Safety testing of Radio, Television and similar equipment and of components used in this kind of equipment. Standards:

• IEC/EN60065
• IEC/EN 60950-1
• UL 1414
