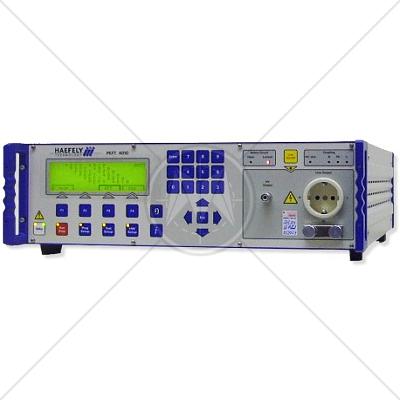

Haefely PEFT 4010 Burst Test System per IEC/EN 61000-4-4 Ed. 1 & 2

Description

The PEFT 4010 instrument contains all the features expected from a top quality EFT generator. Unbeaten performances paired with a high end assembly guarantee a cost effective, long-lasting investment and valuable test results.

Electrical fast transients (EFT) are the most common sources of disturbances in modern electronic circuits. EFT/bursts are caused by the operation of electro-mechanical switches, motors or power distribution switchgears.

PEFT 4010 can either be operated by the front panel keys in a standalone manner or be controlled by PC via RS232 or IEEE 488 as part of a complete EMC test system.

Tests can be performed manually or automatically with predefined test programs. The front panel layout with its large LCD display and the intuitive software are especially designed for self explanatory and safe operation of the instrument. Up to 36 test setups can be programmed and saved on the internal nonvolatile memory.

Bursts are generated according to the related standards IEC 61000-4-4 and EN 61000-4-4. The PEFT 4010 can deliver EFT impulses in different formats including normal, continuous, random and real pulse distribution.
For better handling, the PEFT 4010 is equipped with two grounding connections, one at the front panel and one at the rear panel. This is very helpful in making connections to the ground plane if the PEFT 4010 is used either horizontally or vertically.

With the integrated Transition Function Unominal, the spike frequency, the burst duration and the burst period can be varied automatically during a test. Besides this, it is also possible to edit the parameters manually during a test.

Besides conventional safety features, the PEFT 4010 contains a separate Line ON/OFF switch with which the main supply can be disconnected from the equipment under test.

Features

  • EFT impulse generation according to newest standards and latest technology
  • ESD control and report functions for attaching an Electrostatic Discharge gun
  • Automatic test operation for shortest measuring time and minimal setup effort
  • Data exchange to printer or computer is possible without any additional hardware/software
  • Compact and reliable construction for factory, laboratory or field use
  • Remote control is provided by optional software (WinFEAT&R) designed especially for EMC testing
  • ISO 9001 : 2000 certified manufactured

Applications

  • Approval Testing
  • Product Development
  • Post Design Diagnostics
  • Industrial
  • Medical
  • Telecommunication
  • Household
  • Many more

Specifications

Wave Shape into 50Ω load

Rise time

5 ns ± 30 %

Impulse duration

50 ns ± 30 %

Wave Shape into 1000Ω load

Rise time

5 ns ± 30 %

Impulse duration

50 ns – 15 / + 100 ns

Burst Characteristic

Voltage range

0.22 … 4.8 kV

(0.1 … 4.8 kV in expanded mode)

Spike frequency

1 Hz … 1 MHz

(1 Hz … 2 MHz in expanded mode)

Burst duration

0.01 … 999 ms

Burst period

0.1 Hz … 400 Hz

2.5 ms … 10 s

1 period … 500 periods

Impulses per second

Max. 12’000

Impulses per burst

Max. 1’000

Spike distribution

normal, continuous, random, real (real5, real100 with “Real

Burst” option)

Polarity

positive, negative

Test time

10 s … 8 h per path

Single Phase Coupling/Decoupling Network

Maximum AC voltage

264 V @ 16 … 440 Hz

Maximum AC current

16 A @ 50 … 60 Hz, 10 A @ 400 Hz

Maximum DC voltage

125 V

Maximum DC current

16 A (dependant on DC voltage)

Coupling Modes

L-GND, N-GND, PE-GND, LN-GND, LPE-GND, NPEGND, LNPE-GND

Residual voltage at Test Supply Input

≤ 10% of applied test voltage

Synchronization

Frequency

16 2/3 Hz, 40 Hz, 50 Hz, 60 Hz, 400 Hz, auto

Impulse trigger

automatic, manual, external

System Configuration

EUT fail input

BNC, logic low to trigger

P90 interface

for a 3-phase CDN extension

PESD interface

for connecting an ESD generator

Printer interface

Centronix

Computer interface

RS-232, IEEE-488 (optional)

Power Supply

Voltage

85 … 264 VAC, 150 VA

Frequency

50 / 60 Hz

Weight and Dimension

Weight

14 kg

W x H x D

450mm x 130mm x 570mm

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
