Haefely ESD Calibration Set

• Description
• Features
• Specifications

Description

ESD generators are calibrated according to the standard IEC/EN 61000-4-2 Ed 2.0. This new Calibration Set allows the user to take measurements conforming to the new 4GHz requirement in accordance with IEC 61000-4-2 Ed. 2.0.

Measurement of individual impulse parameters is performed using a special coaxial current shunt. This has a nominal impedance of 2 Ohms. Because ESD events can be generated as high as 120A, attenuators are required to reduce the impulse-voltage level so it can be displayed on commercial oscilloscopes.
An oscilloscope with minimum 2GHz bandwidth is required to properly display the ESD impulse.

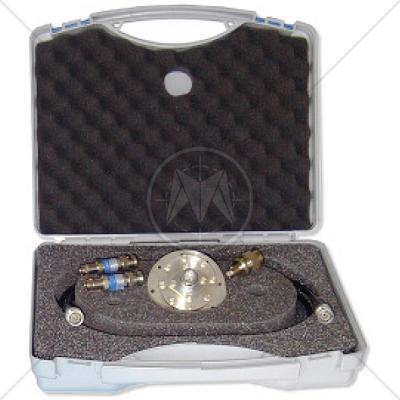

The Calibration Set has been developed as a tidy unit with the cable, attenuator and measuring target required to perform IEC/EN 61000-4-2 calibrations.

The ESD Calibration Set is complete with instructions and application sheet.

Features

• ESD target 2 Ohm / 4GHz
• One 20dB / 18GHz attenuator (additional 20dB attenuator optionally, ordering number 0780841)
• Coaxial cable 1 meter
• According to IEC 61000-4-2 Ed. 2.0
• 4GHz bandwidth
• Up to 30kV / 120A ESD-impulse
• User manual & test certificate
