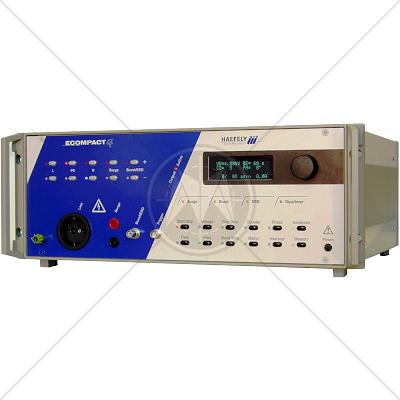

Haefely ECOMPACT 4 Compact Transient Immunity Test System 4.2kV

Description

The ECOMPACT 4 is an ultra-compact immunity tester that performs all the most commonly used transient immunity tests, including Surge, EFT, Dips/Interrupts and AC/Surge Magnetic Field. The simplified user interface provides quick selection of tests and test levels, and even lets you change test parameters “on the fly” while running a test.

The actual EUT power mains voltage and current are indicated in the display. Using the Electronic-Fuse function, the user can set an upper limit for EUT power mains current. This feature is useful to protect the EUT from unnecessary damage.

By using the integrated safety-circuit and warning-lamp functions a high degree of operator safety is guaranteed. The included “EMV-Check” software is compatible with all latest windows versions, and allows full automation of the test routine as well as data gathering and test report generation.

Whether you test to the IEC 61000 series “CE Mark” standards, the IEC 60601 Medical Device standards, or any number of telecom and product specific standards, the ECOMPACT 4 tester is your one stop test station for everything from precompliance to full compliance to product development testing.

Features

  • Surge impulse voltage up to 4.2kV
  • Surge impulse current up to 2.1kA
  • EFT impulse voltage up to 4.2kV
  • Integrated single-phase CDN 250V/16A
  • Test routine storage and recall
  • According to the latest edition of:
    IEC / EN 61000-4-4 Edition 2
    IEC / EN 61000-4-5 Edition 2
    IEC / EN 61000-4-11 Edition 2

Applications

  • IEC 61000-4-X “CE Mark” Basic Standards
  • IEC 60601 for Medical Equipment
  • IEC, ANSI, ITU, UL Product Standards

Specifications

System Mainframe

Control Power

100/115/230V 50/60 Hz

Memory Storage

20 positions

Communication Interface

RS232, RS485

Weight

30 kg

Dimensions (W x H x D)

48 x 18 x 44 cm

IEC / EN 61000-4-4 Edition 2 Electrical Fast Transient

Output Voltage

0.2 – 4.2 kV

Polarity

Positive and Negative

Output Impedance

50 Ohms

Rise Time

5 ns +/- 30%

Impulse Duration

50 ns +/- 30% (50 Ohms)

50 ns –15 +100 ns (1 kOhm)

Spike Frequency

0.5 – 100 kHz

Burst Duration

0.75 – 130 ms

Burst Period

10 – 2400 ms

Spikes per Second

Max. 2500 at U < 3 kV

Max. 1250 at U = 3 kV to 4.2 kV

Integrated Single Phase Coupling Decoupling Network

33 nF coupling capacitance

1.5 mH decoupling inductance

230V AC/60V DC, 16A

IEC / EN 61000-4-5 Surge Combination Wave

Output Voltage

0.2 – 4.2 kV

Voltage Rise Time

1.2 us +/- 30%

Voltage Duration

50 us +/- 20%

Polarity

Positive and Negative

Output Impedance

2 Ohms

Synchronization

0 – 359 deg, 1 deg res.

Output Current

0.1 – 2.1 kA

Current Rise Time

8 us +/- 20%

Current Duration

20 us +/- 20%

Repetition Rate

10 s – 999 s

Integrated Single Phase Coupling / Decoupling Network

 230V AC / 60V DC, 16A

According to IEC/EN 61000-4-5

Edition 1&2

IEC / EN 61000-4-11 Edition 1 & 2 and IEC / EN 61000-4-29 Dips and Interrupts

Max. Voltage

250V AC/DC

Max. Current

16A AC/DC

Dip Levels

0%, 40%, 70%, 80%

Interrupt Time

0.1 ms – 998 s

Repetition Time

0.2 ms – 999 s

Phase Synch.

0 – 359 degree asynchronous

16 / 40 / 50 / 60 Hz

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
