Graphtec WR300-16 Thermal Arraycorder 16 Channel

• Description
• Features
• Specifications

Description

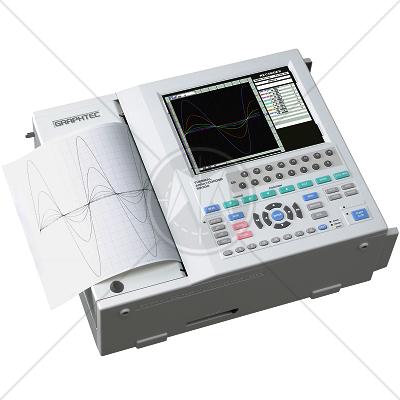

The WR310 Series Thermal Arraycorders are economical waveform recorders available in 4, 8 and 16 channel configurations. Unlike old-fashioned paper-only recorders, the WR310 series is a 21st century technology through and through. In fact, this unit is nothing less than a single-box version of the ultra-modern DM3100 with the screen and printer built in!

And it offers the same kinds of plug-in modules available for the DM3000 series. These are convenient 2-channel plug-in modules that adapt the WR300 to a wide variety of input types and sensors, including voltages up to 500 V, strain gages, thermocouples, frequency/RPM signals, and more. There's also a logic input amp which offers the same number of inputs as the base machine (4, 8, or 16).

The data can be captured to the memory, on paper, or to the optional hard drive* or PCM-CIA flash RAM memory card. Data are shown all the time of the 8.4" color LCD screen in a variety of formats, including scroll. Oscilloscope, XY, and even FFT! Data can be printed in real time or after acquisition, to the built-in 100 or 200 mm wide chart output.

Ethernet and USB interfaces are built-in so that you can control the system from your computer (OPS software is included). The same software and interfaces can also transfer data to your computer and convert it to several popular formats, including Excel and delimited ASCII.

Features

• Models available with 4, 8 or 16 input channels
• 8.4" color LCD monitor for data display and the graphical user interface
• Plug-in 2-channel WR3 series amplifiers adapt the system to a wide variety of input types and sensors.
• Up to 1 MS/s sampling rate on all channels
• Bandwidth (frequency response): dc to 50 kHz
• 1 MSample internal memory PER CHANNEL is standard
• Built-in 200mm (8") wide thermal array printer in the 8- and 16-ch models; 100 mm wide printer in the 4-ch model
• Interfaces: Ethernet, USB, and slot for flash memory cards
• Performance, reliability and ease of use
• Includes PC software for control, data transfer and conversion to popular formats
