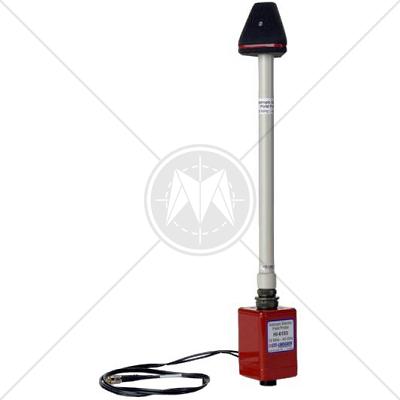

ETS-Lindgren HI-6153 Electric Field Probe 10 MHz 40 GHz

Description

The laser powered HI-6153 Electric Field Probe provides broadband EMF frequency coverage and wide dynamic range that satisfies the demands of most test requirements. To take advantage of this capability, the HI-6153 was designed to be single range reading so data can be read continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually, or summed.

Fiber optic signal and power lines link the Model HI-6153 probe to either the model HI-6100 Field Monitor or as a direct connect to a PC with the HI-6113 Laser Data Interface and ProbeView Laser Software.

The HI-6100 provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four probes can be displayed simultaneously.

The HI-6113 Laser Data Interface provides the laser power and communications for the HI-6153 Electric Field Probe. A USB connection to the PC allows for quick and easy data collection, using ProbeView Laser software.

Features

  • Laser Powered for Unlimited Test Time
  • Frequency Range: 10 MHz - 40 GHz
  • Dynamic Range: 2.0 - 800 V/m (single range)
  • Provides Individual and Summed Axis Values
  • A2LA Accredited Calibration Report
  • Suitable for MIL Standard Specs:
    -- MIL-STD 461F Radiated Susceptibility (RS)
  • Suitable for Automotive Specs:
    -- SAE J1113/27
    -- GM9120P
    -- GM93100GS
    -- GM9114P
  • Suitable for Commercial Specs: EN/IEC 61000-4-3 Radiated Immunities

Specifications

Electrical Specifications

Detection

Isotropic (X, Y, and Z Axis Readings)

Frequency Range

10 MHz to 40 GHz

Frequency Response with Correction

10 MHz to 18 GHz ± 0.9 dB
18 to 40 GHz ± 1.1 dB

Frequncy Response (Typical)

10 to 100 MHz + 3.0, -4.0 dB
100 MHz to 1 GHz +3.0, -0.50 dB
1 to 18 GHz +4.0, -2.0 dB
18 to 40 GHz +3.5, -4.5 dB

Dynamic Range

2 to 800 V/m (Single Range)

Resolution

0.01 V/m

Isotropic Deviation

±1.0 dB < 18 GHz

Linearity

±0.5 dB @ 1 GHz

Sample Rate (Typical)

HI-4413P Serial Modem - 44 samples/second maximum

HI-6100 Field Monitor - 70 samples/second maximum

Overload Withstand

>1500 V/m CW

Physical Specifications

Physical Interface

Duplex Optical Fiber (62.5 micron multimode)
FC for laser, Integral 1m optical cable

Operating Temperature Range

10° to 40° C, 5-95% Relative Humidity Non-condensing

Dim. L.

43.8 cm   (17.24 inches)

Dim. W.

5.7 cm   (2.24 inches)

Weight

0.36 kg (12.64 oz)

Mounting

1/4-20 UNC Internal Thread

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
