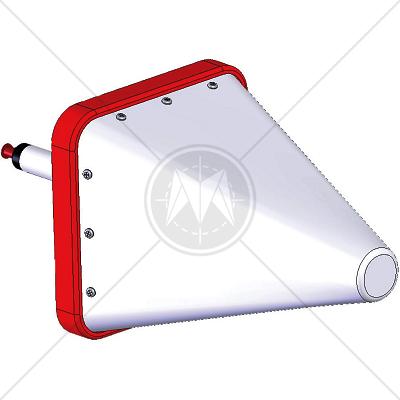

ETS-Lindgren 3186 Dual Stacked LPDA Antenna 1 GHz – 18 GHz

Description

ETS-LINDGREN’S MODEL 3186 is dual stacked log periodic dipole array antennas (LPDA), each of the two separate LPDAs comprising the dual array are 100 Ω antennas. When assembled in parallel, the results are a 50 Ω input impedance array. This array provides increased gain when compared to a single LPDA. The arrangement of the two LPDA in the arrays provides a very constant pattern across the entire frequency range.

This antenna is ideal as a receive antenna for CISPR emissions testing above 1 GHz. It is also ideal when performing the site VSWR test as per CISPR 16.

Frequency Range
The antenna covers a frequency range of 1 GHz to 18 GHz, making it ideal as a receive antenna for CISPR 16 based testing above 1 GHz.

This antenna can be used with ETS-Lindgren’s Model 3183 for performing the site VSWR chamber validation method per CISPR 16.

Low VSWR
The typical VSWR for the model 3186 is less than 2:1.

Low Input Power
This antenna is mainly a receive antenna, with a maximum input power of 20W continuous wave and a peak power of 30W.

Constant Beamwidth and Flat Directivity
The model 3186 was designed to provide a very constant illumination from 1 GHz to 18 GHz. The Beamwidth in the two principal planes is 59.8 degrees for the E-plane (the polarization plane) and 57.0 degrees for the H-plane (the orthogonal plane) while the directivity is about 10 dB across the entire frequency range.

Features

  • 1 GHz - 18 GHz Frequency Range
  • 2:1 VSWR Average
  • Up to 20W Input Power
  • Constant E- and H-Plane Beamwidth
  • Flat Directivity

Specifications

Electrical Specifications

Frequency Minimum

1 GHz

Maximum Continuous Power

20 W

Pattern Type

Directional

Polarization

Linear

Impedance (Nominal)

50 Ω

VSWR (Avg)

2:1

Connector

SMA (Female)

Physical Specifications

Width

19.7 cm   (7.76 inches)

Length

44.1 cm   (17.36 inches)

Height

19.7 cm   (7.76 inches)

Weight

.7 kg   ( 1.54 lb )

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
