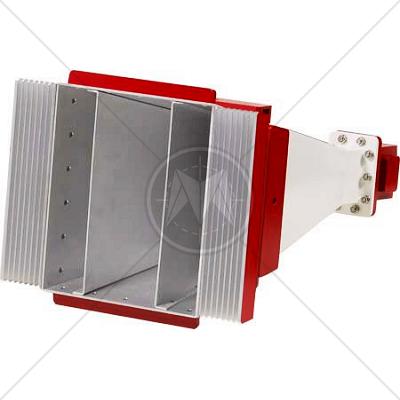

ETS-Lindgren's Model 3162-01 Pyramidal Type High Gain Horn was specifically developed for the GMW 3097 and ES-XW7T-1A278-AC specifications for automotive EMC components testing.
These tests require that the EUT be exposed to a pulsed peak field level of 600 V/m at a distance of 100 cm from the front of the horn.
Because of near field gain compression, most horns fail to meet this spec at the required test distance. The Model 3162-01 optimizes the near field behavior to overcome this problem, and produces a field level of 600 V/m with input power of less than 500 W.
- Meets Specs for:
-- GMW 3097
-- ES-XW7T-1A278-AC
- GHz to 1.5 GHz Frequency Range
- Generates 600 V/m with < 500W
|
Electrical Specifications
|
|
Frequency Minimum
|
1.2 GHz
|
|
Frequency Maximum
|
1.4 GHz
|
|
Connectors
|
Type N
|
|
Impedance (Nominal)
|
50 Ω
|
|
Maximum Continuous Power
|
550 W
|
|
Pattern Type
|
directional
|
|
Peak Power
|
500 W
|
|
Polarization
|
linear
|
|
VSWR Maximum
|
2:1
|
|
VSWR Typical
|
1.5:1
|
|
Physical Specifications
|
|
Height
|
74.68 cm (29.40 inches)
|
|
Length
|
106.27 cm (41.84 inches)
|
|
Weight
|
23.6 kg ( 52.03 lb )
|
|
Width
|
64.77 cm (25.50 inches)
|
Standards
|
CISPR 11 |
|
CISPR 14 - 1 |
|
CISPR 14 - 2 |
|
CISPR 14 - 2 |
|
CISPR 16 - 1 |
|
CISPR 16 - 2 |
|
CISPR 16 - 3 |
|
CISPR 16 - 4 |
|
CISPR 22 |
|
CISPR 24 |
|
IEC/TR EN 61000 - 1 - 1 |
|
IEC/TR EN 61000 - 2 - 1 |
|
IEC/TR EN 61000 - 2 - 3 |
|
IEC EN 61000 - 3 - 2 |
|
IEC EN 61000 - 3 - 4 |
|
IEC/TC EN 61000 - 3 - 5 |
|
IEC EN 61000 - 4 - 2 |
|
IEC EN 61000 - 4 - 3 |
|
IEC EN 61000 - 4 - 4 |
|
IEC EN 61000 - 4 - 5 |
|
IEC EN 61000 - 4 - 6 |
|
IEC EN 61000 - 4 - 7 |
|
IEC EN 61000 - 4 - 8 |
|
IEC EN 61000 - 4 - 9 |
|
IEC EN 61000 - 4 - 11 |
|
EN 50 081 part 1 |
|
EN 50 081 part 2 |
|
EN 55 011 |
|
EN 55 013 |
|
EN 55 014 |
|
EN 55 015 |
|
EN 55 020 |
|
EN 55 022 |
|
EN 55 024 |
|
EN 50 082 part 1 |
|
EN 50 082 part 2 |
|
EN 50 093 |
|
FCC Part 15 |
|
MIL-STD - 461E |
|
»
