EM TEST UCS 500N5P Power Fail Simulator EN/IEC 61000-4-11 & 4-29

• Description
• Features
• Specifications

Description

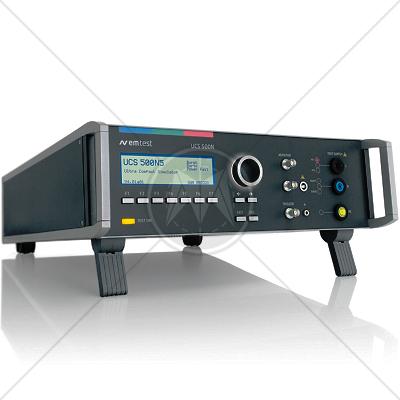

The UCS 500N5P is the new dedicated single-phase PowerFail simulator based on the successful UCS 500N series of ultra-compact simulators. Offering all the benefits of the well-known UCS 500N5 it is designed as a PowerFail simulator only. This makes it the full performing PowerFail simulator as per IEC 61000-4-11 and IEC 61000-4-29 with the best benefit-to- cost ratio yet upgradeable to include other test abilities such as EFT/Burst and Combination Wave Surge. By means of external accessories the UCS 500N5P can also be used to generate power-frequency magnetic fields up to 1,000A/m.

The UCS 500N5P includes everything necessary to conduct fully compliant tests. The power mains supply for the controls and for the DUT is separate to render it more flexible to use with different DUT supply voltages.

The UCS 500N5P can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow controlling an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.

Pre-programmed Standard Test routines allow highest user convenience. Still the UCS 500N5P offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.

Features

• Fully compliant to IEC 61000-4-11 Ed.2 as well as IEC 61000-4-29
• Voltage/current up to 300V/32A AC/DC
• Switching time between 1us and 5us
• Inrush current > 500A
• Monitor outputs for voltage and current
• Fail inputs
• External variac control 0-10Vdc
• Magnetic field tests with optional accessories
• Manual operation from front panel
• USB and GPIB-Bus for remote control
