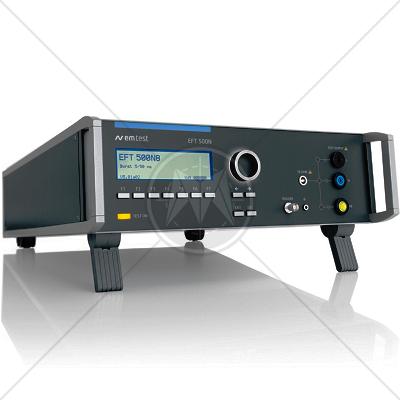

EM TEST EFT 500N8 Electrical Fast Transient Generator 7kV

Description

The EFT 500N8 is the state-of-the-art EFT/Burst tester with a built-in coupling/decoupling network for single phase or three-phase mains supply lines and a HV terminal to connect a capacitive coupling clamp. The spike frequency can be varied from as low as 100Hz to 1,000 kHz. The EFT 500N8 is capable to generate 1,000 spikes per second or up to 150 spikes per burst. Its performance fully complies with IEC 61000-4-4:2004, IEC 61000-4-4 Amd.1 Ed.2:01/2010 and IEC 61000-4-4 Ed.3: 03/2012. Pre-programmed Standard Test routines and a number of selected User Test routines make the EFT 500N8 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.

The wide ranges to adjust the spike frequency and the burst duration are well-known for many years. Of course, the EFT 500N8 meets the latest waveform requirements into load at the 50ohm output as well as at the EUT port in common mode operation unlike other generators. The EFT 500N8 is for sure a fully compliant EFT/Burst tester. Its increased pulse voltage capability also meets requirements of some special product family standards and manufacturer requirements, especially household appliances.

Features

  • Standalone Tester
  • 7,000V Burst voltage
  • Spike frequency 1MHz
  • Built-in 1ph or 3ph coupler
  • Standard Test routines
  • USB and GPIB interfaces

Specifications

Voltage range

1,000V – 7,000V

Into 50ohm

500V – 3,500V

Pulse shape

5/50ns into 50ohm load

Rise time tr

5ns ± 30%

Pulse width td

50ns ± 30%

Pulse shape

5/50ns into 1,000ohm load

Rise time tr

5ns ± 30%

Pulse width td

35ns to 150ns

Source impedance

50 Ohm ± 20%

Polarity

Positive/negative

Direct

Via HV coax connector

Coupler

L, N and PE, all combinations

DUT supply AC

250V/16A, 50/60Hz

DUT supply DC

250V/10A

DUT supply

Other DUT supply voltages on request

CRO Trigger

15V trigger signal for oscilloscope;

burst duration and pulse frequency

can be checked

Serial interface

USB

Parallel interface

IEEE 488, address 1 – 30

Supply voltage

115/230V, +10/-15%

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
